WYTS
Flow Capacity Range: 0-4500 m3/h Head/Pressure Range: 0-184 m S Type Horizontal Electric Driven Double Suction Split Case Fire Pump
DN Range of Discharing Pipe: 80-600 mm (3''-24'')
Flow Capacity Range: 0-4500 m3/h
Head/Pressure Range: 0-184 m
Power Range: 1.8- 1780Kw
Product Advantages
Energy-efficient operation reduces power consumption.
Double-suction design ensures vibration-free operation.
Easy maintenance with split-type construction—features commonly found in a reliable horizontal split case pump, making it well-suited for applications such as a horizontal split case fire pump.

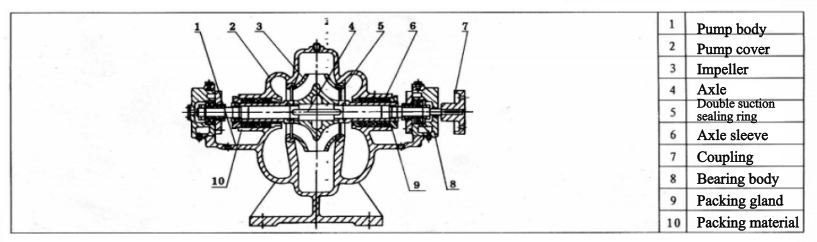

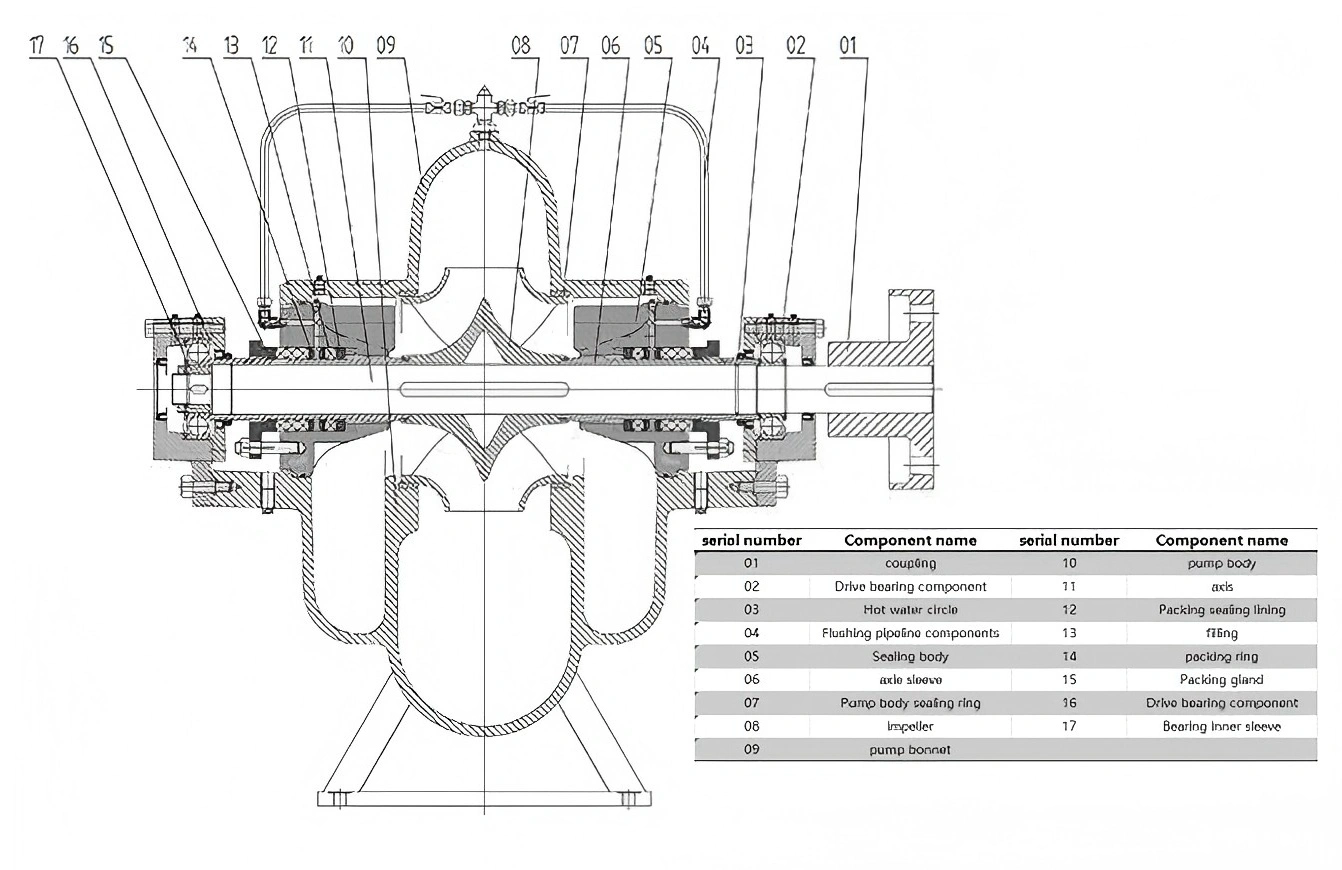

Main Components & Materials Selection
Main Components: Pump body, pump cover, impeller, shaft, double suction seal ring, and shaft sleeve.
Material Selection: The shaft is crafted from high-quality carbon steel, whereas the other main components are made of cast iron, cast steel, or stainless steel, taking into account factors such as strength and corrosion resistance.
Main Features

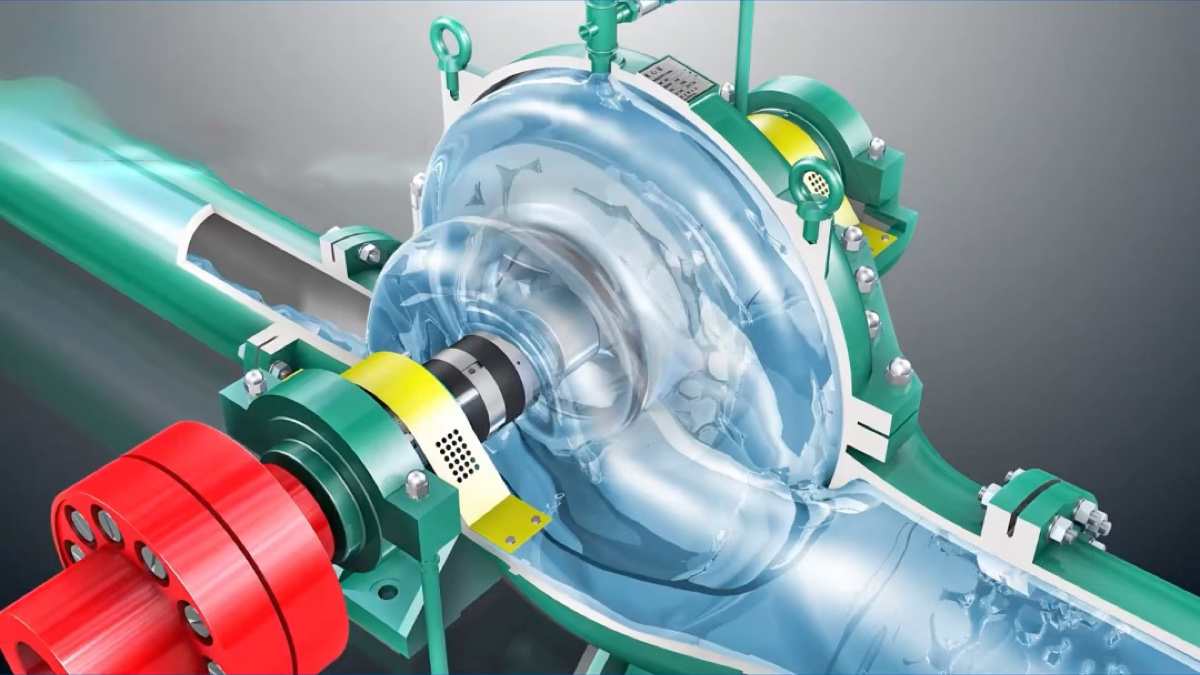

High-Efficiency Double-Suction Design
As a premium high pressure water pump for fire fighting, it ensures balanced hydraulic axial thrust
Optimized impeller design minimizes vibration and noise
Exceptional Pressure Performance
This fire water pump delivers stable high-pressure output.
Split-Type Configuration
Horizontally split casing allows easy maintenance
Quick access to internal components without pipe disconnection
Applications
Commercial building fire protection systems (fire fighting pump)
Industrial plant fire suppression
High-rise building standpipe systems
Fire truck water supply (high pressure water pump for fire fighting)
Municipal fire water supply
