WYTGDL

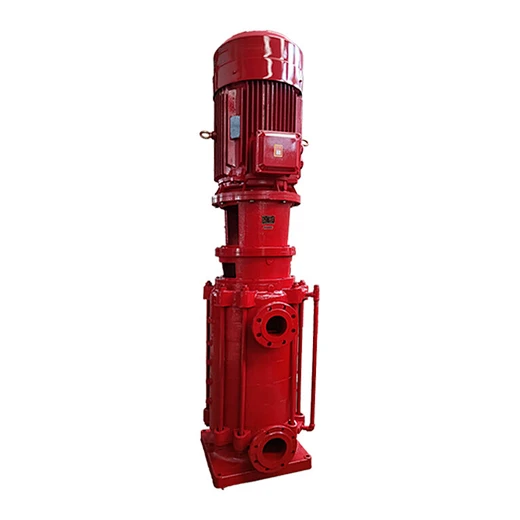

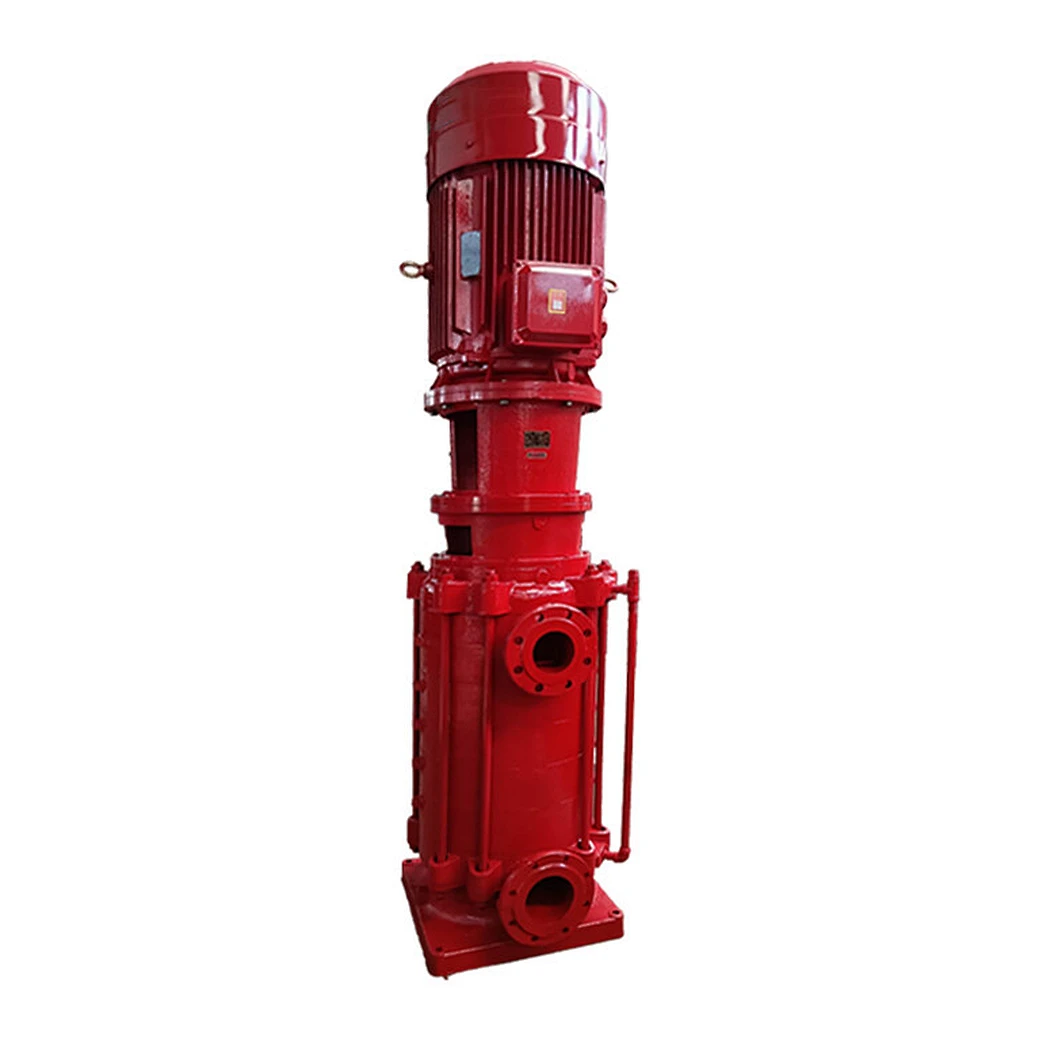

Head Range：24-380m Motor Power：1.1-90kW Inlet/Outlet Range：DN25-DN150 GDL Vertical Multi-stage Pipeline Centrifugal Pump
Head Range：24-380m
Motor Power：1.1-90kW
Inlet/Outlet Range：DN25-DN150
Structural Features
- Vertical multi-stage segmented design
Adopting vertical coaxial structure, the impeller and guide vane are assembled in series in segments, realizing high-pressure water flow graded pressurization, compact structure and saving floor space.
- Pipeline integrated installation
The inlet and outlet are located in the same straight line, which can be directly embedded in the pipeline system without additional adjustment of pipeline direction, reducing elbows and sealing points.
Mechanical sealing system
Standard wear-resistant mechanical seal adapts to high temperature and high pressure working conditions, effectively preventing media leakage.
Vortex/Cutter Impeller Options
The overflow parts (impeller, pump body) are made of 304/316L stainless steel casting, which is suitable for clear water, mildly corrosive liquids and clean chemical media.
Product Advantages
High efficiency and energy saving
Multi-stage impeller hydrodynamic model optimization, with high-efficiency motor to reduce long-term operating costs.
Low vibration and low noise
Vertical structure with stable center of gravity, rotor assembly dynamic balancing accuracy ≤ G6.3 grade, operation noise ≤ 70dB(A), suitable for quiet environment.
Convenient maintenance
Modular design, no need to disassemble the inlet and outlet piping can be replaced mechanical seals or impeller group, significantly reducing downtime maintenance time.
Wide working condition adaptability
It supports the highest medium temperature +120℃, single pump head can reach more than 200m, and the flow range covers 2~200m³/h (depending on the model).
Application Scenarios
Building water supply system
High-rise building secondary pressurized water supply, fire stabilized pressure, HVAC circulatory system and regional pipeline network pressurization.
- Industrial process transportation
- Water and environmental protection field
Water plant pressurization and transportation, reverse osmosis pretreatment pressure, water treatment chemicals, irrigation and drainage projects.
Service Assurance
- Accurate demand matching
Free on-site demand analysis, customized flow, pressure and piping configuration scheme;
- Rapid delivery response
Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;
- Flexible warranty policy
1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.
