Head Range：60-300m Inlet/Outlet Range：DN25-DN300 G-type Horizontal Stainless Steel Single Screw Pump
Flow Range：0.5-200m³/h
Product Material: 304 stainless steel, cast iron, etc
Head Range：60-300m
Inlet/Outlet Range：DN25-DN300
Motor Power：0.75-90kW
Conveying Materials: Various viscous pastes, cement and other media
Product Material: 304 stainless steel, cast iron, etc
Head Range：60-300m
Inlet/Outlet Range：DN25-DN300
Motor Power：0.75-90kW
Conveying Materials: Various viscous pastes, cement and other media
Send an inquiry
Engineered for viscous, abrasive, and corrosive fluids, the G‑Type Horizontal Stainless Steel Single‑Screw Pump offers high efficiency and rugged longevity. Its screw‑pump design ensures gentle, pulse‑free delivery with low shear, ideal for food, chemical, and wastewater sectors. Built with quality stainless steel, it resists corrosion and rust, providing long‑life reliability even in tough environments, while its hygienic material makes it perfect for sanitary processes. The compact horizontal footprint, easy service access, and energy‑saving operation all add to its outstanding value. For wastewater duties, its dependability rivals that of a submersible sewage pump, and it serves as a flexible substitute for a standard sewage sump pump when handling challenging media. For mobile waste collection and transfer, its suction strength and endurance also perform similarly to a sewage tanker pump, delivering stable results across diverse applications.
CoreFeatures
- Stainless Steel Construction: Built with high‑grade stainless steel, our pump offers superior corrosion protection and a long lifespan. The sturdy construction, akin to that of a durable submersible sewage pump, guarantees consistent performance even in tough environments. Whether you need a sewage sump pump for basin applications or a sewage tanker pump for demanding haulage duties, this unit delivers the strength and reliability you can count on.
- Single Screw Mechanism: The pump utilizes a single screw (rotor) that rotates within a elastomeric stator, creating a series of sealed cavities that transport the fluid from the suction end to the discharge end. This design ensures smooth, pulsation-free flow and gentle handling of the fluid.
- Horizontal Design: The horizontal orientation of the pump makes it easy to install and maintain in tight spaces. It also allows for easy integration into existing pipeline systems.

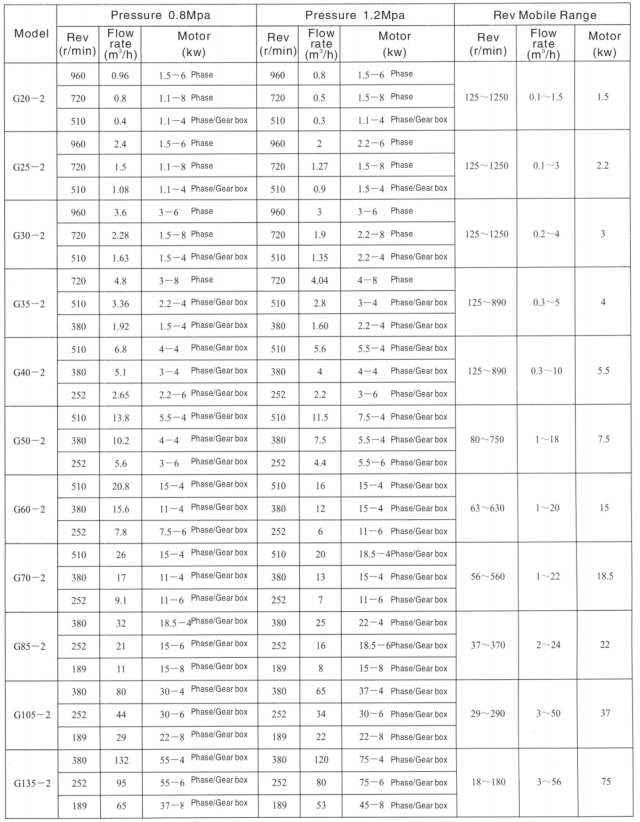

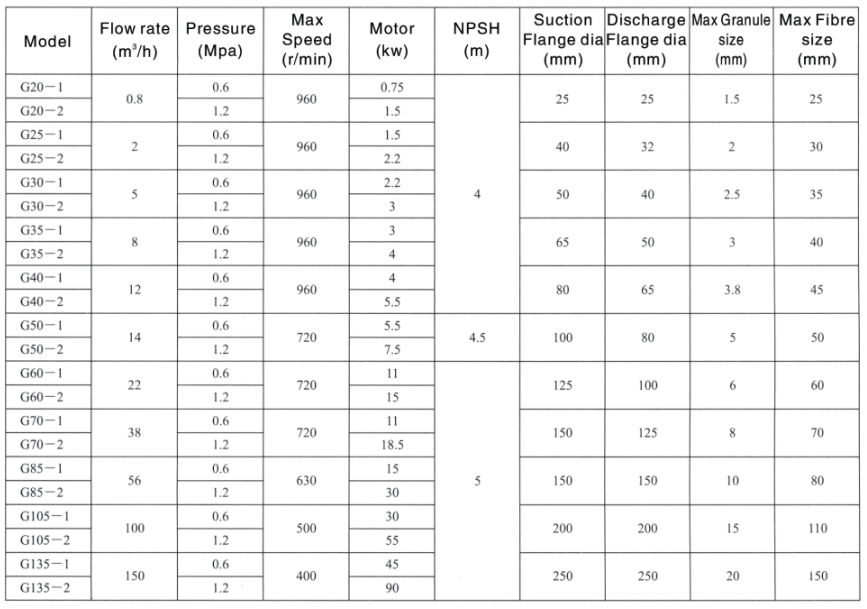

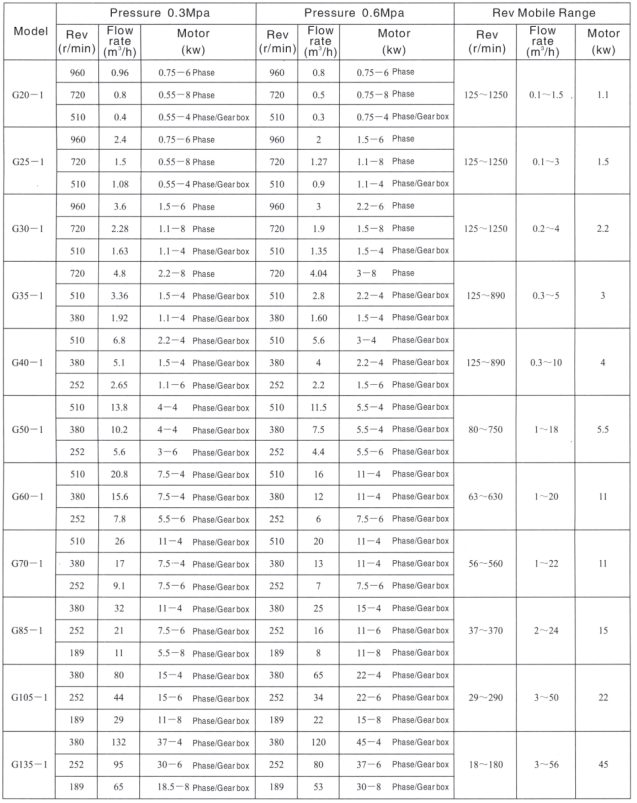

Technical Specifications
- Flow Rate: The pump offers a wide range of flow rates, depending on the model and configuration, making it adaptable to different process requirements.
- Pressure Capability: It can generate sufficient pressure to overcome pipeline resistance and deliver the fluid to the desired location, a capability essential for reliable operation whether in a heavy-duty submersible sewage pump, a dedicated sewage sump pump, or the demanding transfer tasks of a sewage tanker pump.
- Temperature Range: Thanks to its stainless steel build, the pump can handle liquids over a wide temperature span, from low to high, depending on the exact model and seal type. This versatility applies equally to our submersible sewage pump, sewage sump pump, and sewage tanker pump series.
- Power Options: The pump is available with various motor power options to suit different application needs.
Product Advantages
- High Efficiency: The single screw design ensures high volumetric efficiency, reducing energy consumption and operating costs.
- Low Maintenance: The pump's simple construction and few wearing parts make it easy to maintain and repair, minimizing downtime.
- Gentle Handling: The pump's gentle pumping action minimizes shear and degradation of the fluid, making it suitable for handling sensitive or shear-sensitive products.
- Versatility: The G-type pump can handle a wide range of fluids, including those with high viscosity, solids content, or corrosive properties, making it a versatile choice for various industrial applications.
Applications Scenarios
- Chemical Industry: Transferring corrosive chemicals, polymers, and resins.
- Food and Beverage Industry: Pumping viscous food products, such as sauces, syrups, and pastes.
- Pharmaceutical Industry: Handling sterile fluids, creams, and ointments.
- Wastewater Treatment: Transferring sludge, sewage, and other wastewater streams.
