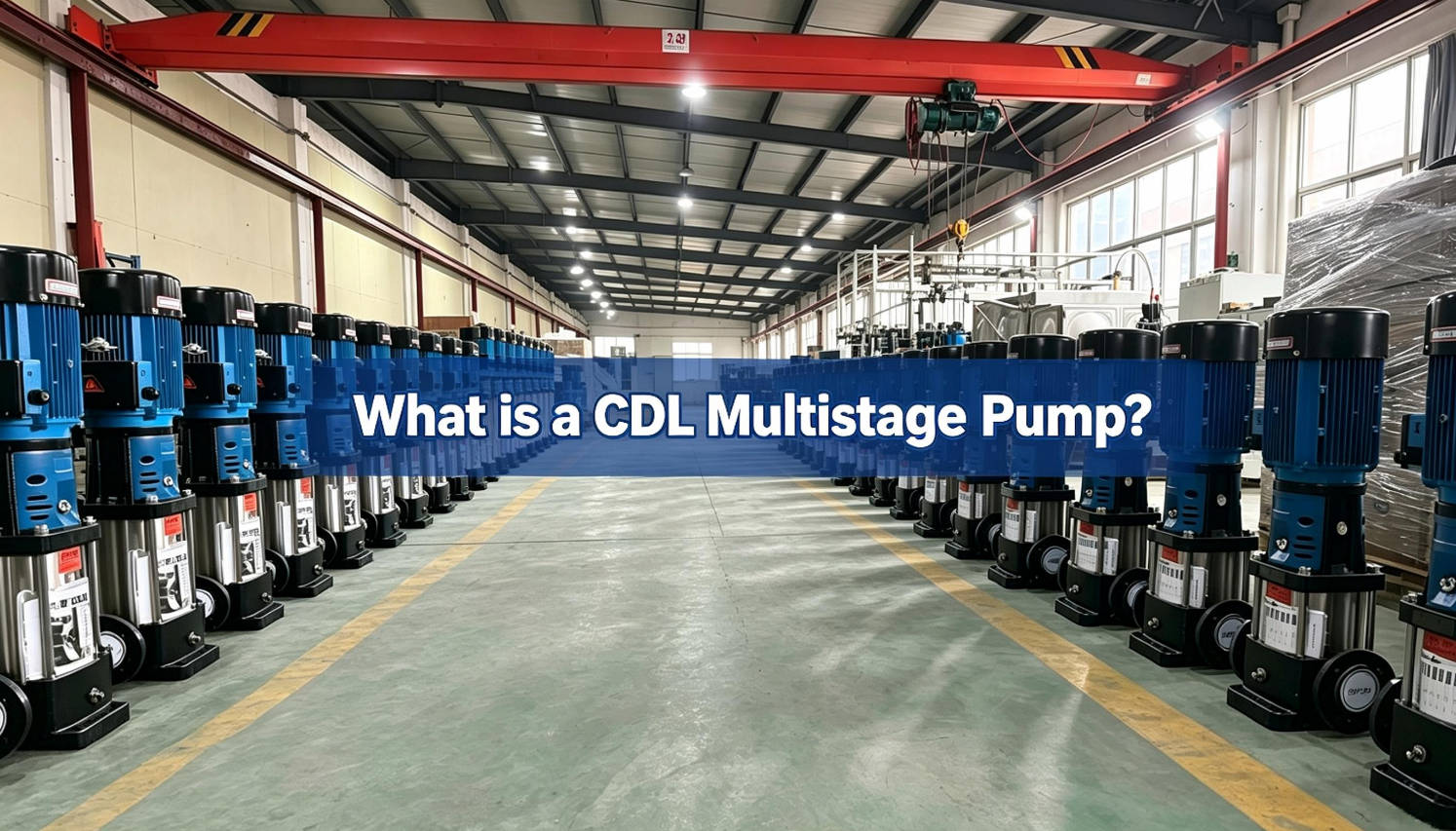

What is a CDL Multistage Pump? Structure, Working Principle, Applications & Selection Guide Introduction
WITNEAT releases a complete technical guide to CDL vertical multistage pumps on our official website. Explore the pump’s working principle, key features, real-world applications and comparison data, to support your pump selection for high-rise water boosting, RO water treatment, and industrial pressurization projects.
1. What is a CDL Multistage Pump? Core Components
A CDL multistage pump is a vertical non-self-priming centrifugal pump with multiple impellers stacked in series inside the pump chamber. It increases fluid pressure step by step through several impellers, instead of relying on a single impeller to build pressure.
Core Components:
Pump casing: The outer shell that holds all internal stages and guides the fluid flow. Impeller stack: Multiple impellers arranged in series; each stage adds pressure to the liquid.
Diffuser assembly: Directs fluid from one impeller to the next and converts velocity energy into pressure.
Pump shaft: Drives all impellers simultaneously, connected to the motor on top.
Motor: Standard TEFC vertical motor directly coupled to the pump shaft.
Because of the multi-stage series design, CDL pumps can deliver high head at relatively moderate flow rates. This makes CDL multistage pumps ideal for water boosting, water treatment, boiler feed, and industrial liquid transfer where high pressure is required.
