TD Type Vertical High-flow Circulating Pump — Reliable Inline Solution for Industrial & Building Water Systems

News Release | WTY Pump Industry

Note: All data is for reference only. Please consult our technical engineers for further information.

Table of Contents

1. Product Overview
2. Core Features of WTY TD Type Vertical High-Flow Circulating Pump
3. Main Technical Advantages
4. Comparative Analysis
5. FAQ for Overseas Customers
6. Overall Conclusion

1. Product Overview

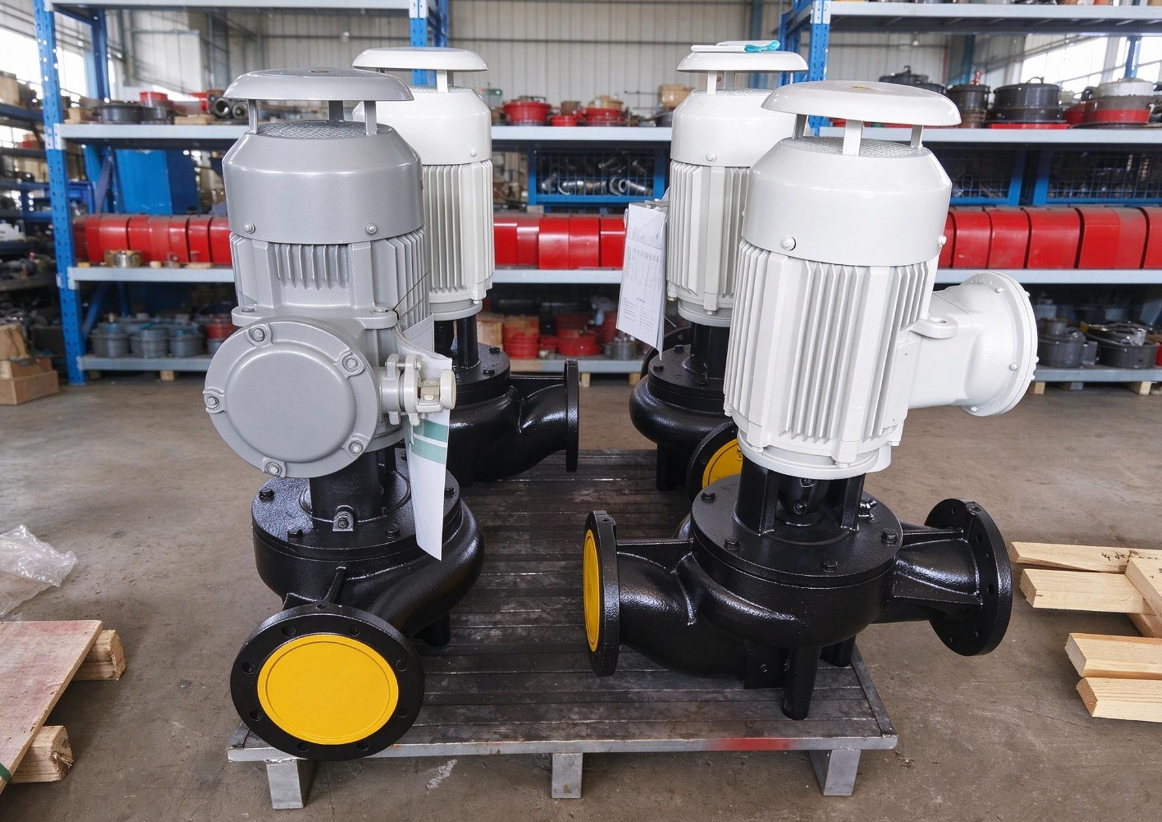

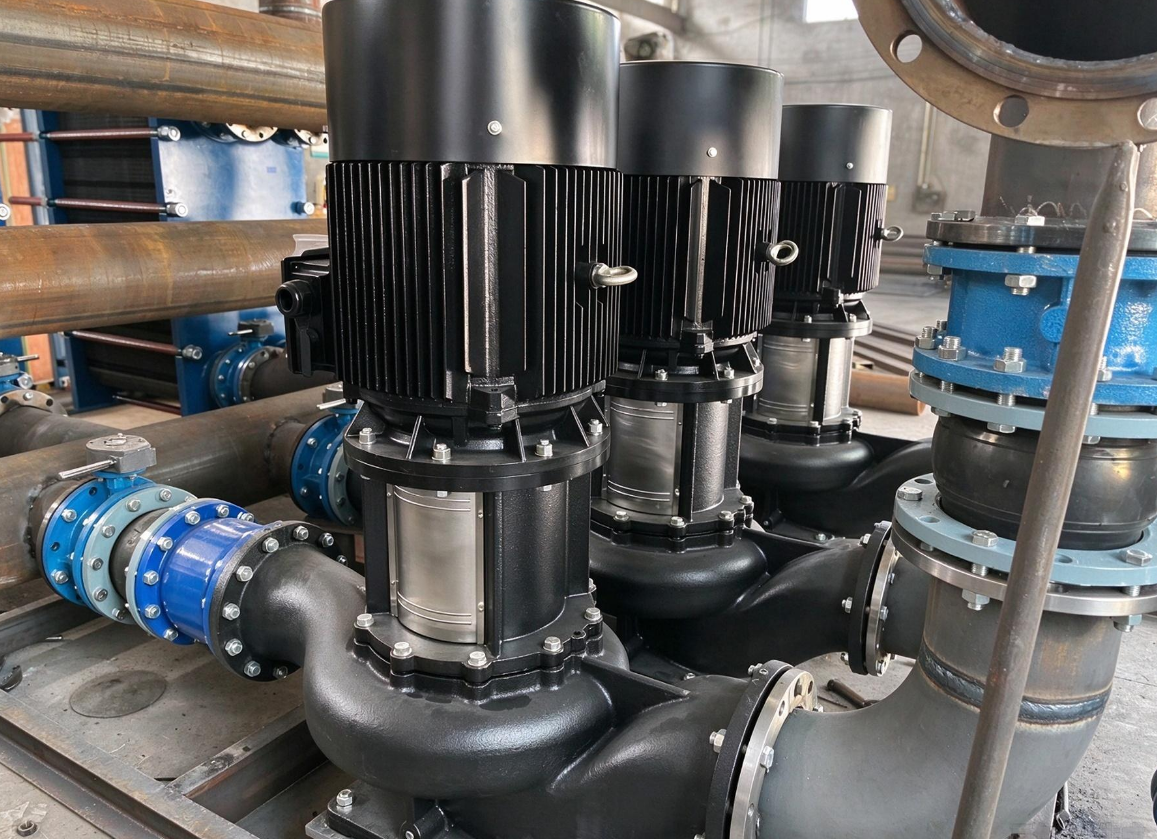

WTY TD type vertical high-flow circulating pump is a single-stage inline centrifugal pump, developed according to the ISO 9906 standard. It is equipped with a standard TEFC motor and mechanical seal, designed for large-volume clean-medium circulation, pressurization, and liquid transfer. Its performance range covers flow 8-1200 m³/h, head 9-90 m, working temperature - 15℃~110℃, standard working pressure PN12 bar (optional PN16 bar). Widely used in air conditioning circulation, boiler feed water, district heating, water supply boosting, water treatment, and urban construction projects.

WTY Conclusion: WTY TD series fully inherits the pull-out disassembly structure from the original TD design, optimizes casting quality and the hydraulic model; WTY provides cast-iron / stainless-steel wetted parts as an optional solution to meet diversified overseas project demands.

2. Core Features of WTY TD Type Vertical High-flow Circulating Pump
