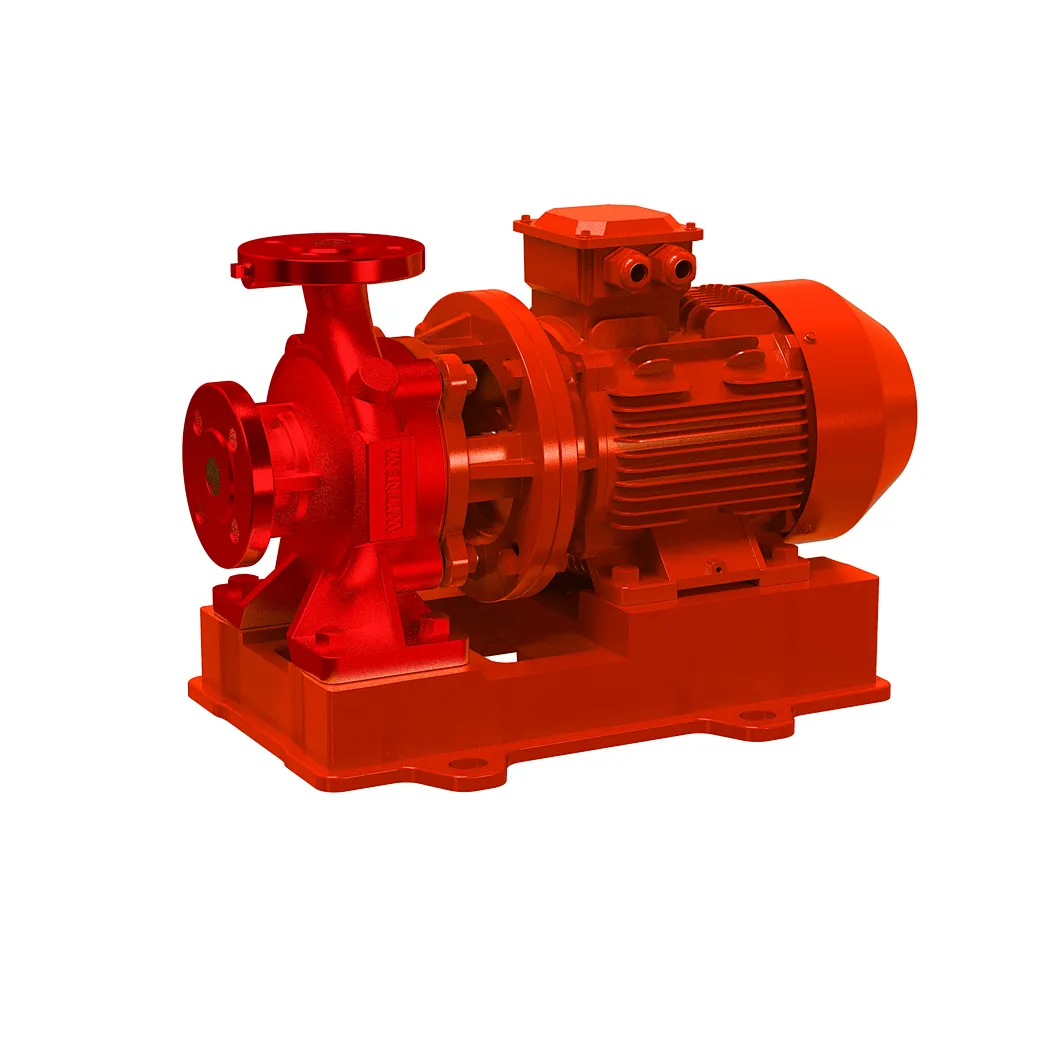

Head Range:8-150m Inlet/Outlet Range:DN20-DN500 ISW Horizontal Pipeline Centrifugal Pump
Flow Range：2-2000 m³/h
Head Range:8-150m
Inlet/Outlet Range:DN20-DN500
Motor Power:1.1-90 kW
Head Range:8-150m
Inlet/Outlet Range:DN20-DN500
Motor Power:1.1-90 kW
Send an inquiry
WYT’s ISW Horizontal Pipeline Centrifugal Pump is a highly efficient, energy-saving centrifugal pump designed specifically for pipeline systems. Its structural layout, as shown in a typical centrifugal pump diagram, reflects a focus on streamlined fluid dynamics. Engineered to deliver reliable performance in transferring clean water or liquids with similar physical and chemical properties, this model features a compact structure and easy installation, making it a preferred choice trusted by leading centrifugal pump manufacturers. It is widely used in industrial applications, municipal water supply, agricultural irrigation, HVAC systems, and fire protection boosting.
Structural Design
Compact structure and small footprint: This pump is a horizontal structure that integrates the machine and pump, occupying a small footprint. Compared with ordinary horizontal pumps—including many designs seen in a typical centrifugal pump diagram—it can reduce the footprint by about 30%.
Reliable sealing, no leakage: The shaft seal adopts high-quality mechanical seals, which are wear-resistant, leak free, and have a long service life. The hard alloy seals made of different materials ensure that there is no leakage during the transportation of different media.
Efficient and energy-saving:Adopting advanced water conservancy models, it has the characteristics of high efficiency and good performance—comparable to a well-engineered multistage centrifugal pump.
Reliable sealing, no leakage: The shaft seal adopts high-quality mechanical seals, which are wear-resistant, leak free, and have a long service life. The hard alloy seals made of different materials ensure that there is no leakage during the transportation of different media.
Efficient and energy-saving:Adopting advanced water conservancy models, it has the characteristics of high efficiency and good performance—comparable to a well-engineered multistage centrifugal pump.
Products Advantages
Smooth operation and low noise: The motor and pump are directly connected, simplifying the intermediate structure and increasing the smoothness of operation. The absolute concentricity of the pump shaft and excellent dynamic and static balance of the impeller ensure the smooth operation of the pump without any vibration.
Easy maintenance and low failure rate: The structure is simple and reasonable, and the key parts are matched with international first-class quality, greatly improving the fault free working time of the whole machine. Replacing vulnerable parts such as seals and bearings is simple and convenient, reducing maintenance costs and time
Application Scenarios
Building water supply system
High rise building water supply: used for pressurized transportation of domestic and fire-fighting water.
Air conditioning circulation system: provides power in the chilled water or cooling water circulation of central air conditioning.
High rise building water supply: used for pressurized transportation of domestic and fire-fighting water.
Air conditioning circulation system: provides power in the chilled water or cooling water circulation of central air conditioning.
Industrial process
Chemical industry: Transport clean water or media with physical and chemical properties similar to water (attention should be paid to corrosion resistance requirements, stainless steel material can be selected).
Light industry: Liquid circulation in production processes such as textiles and papermaking.
Chemical industry: Transport clean water or media with physical and chemical properties similar to water (attention should be paid to corrosion resistance requirements, stainless steel material can be selected).
Light industry: Liquid circulation in production processes such as textiles and papermaking.
Municipal Administration and Environmental Protection
Urban water supply: the medium and low pressure water transmission and distribution system of the water plant.
Urban water supply: the medium and low pressure water transmission and distribution system of the water plant.
Centrifugal Water Pump for Irrigation: Perfect for agricultural irrigation systems, delivering consistent water supply to fields.
Customer Service
Personalized System Optimization
Our engineering team provides complimentary on-site assessments to deliver fully customized solutions - precisely matching your required flow rates, pressure specifications, and pipeline configurations for optimal performance.
Expedited Project Execution
Featuring modular pre-engineering, we achieve 30% faster production cycles compared to industry standards. Priority scheduling is available for urgent project requirements with guaranteed rapid deployment.
Comprehensive Protection Plans
Standard 12-month full equipment warranty，extended 24-month coverage for custom-engineered components
