TD Type Vertical High-flow Circulating Pump

Flow Range：10-3000 m³/h
Head Range：10-80m
Inlet/Outlet Range：DN80 ~ DN200
Motor Power：0.75-150kw

Send an inquiry

TD Type Vertical High-flow Circulating Pump of WTY

TD Type vertical high‑flow circulating pump is inline centrifugal equipment for closed‑loop circulation, widely applied for furnaces and HVAC systems.

The vertical inline design fits directly into pipelines, saving installation space and simplifying maintenance. Fitted with high‑efficiency impeller and low‑noise motor, it runs continuously stably, with medium temperature up to 120℃.

Optional seals and material combinations are available to satisfy different on‑site circulating working requirements.

TD Vertical vs Horizontal Circulating Pump

Item	TD Vertical Circulating Pump	Horizontal Circulating Pump
Installation	Inline vertical, save floor space	Horizontal base‑mount, occupy more ground area
Motor Position	Motor on pump top	Motor side‑by‑side with pump body
Pipe Layout	Direct flange inline connection	Need base & offset pipeline
Maintenance	Convenient motor access	Need to disassemble pipe for overhaul
Typical Use	Furnace, HVAC closed circulation	Large‑flow industrial water transfer

This section details the key technical parameters and operating range of the TD vertical high flow circulating pump, including its core indicators such as rated flow, head, power and efficiency as a high flow pump.

Main connection dimensions
DN		150Lb						300Lb
Inch	mm	L	H	H1	D1	D2	Z-φ(M)d	L	H	H1	D1	D2	Z-φ(M)d
2	50	43	300	210	120.5	92	4-19	43	330	230	127	92	4-19
3	80	49	340	230	152.5	127	4-19	49	420	270	168.5	127	4-22
4	100	54	400	265	190.5	157	4-19	54	490	305	200	157	4-22
5	125	57	480	325	216	186	4-22	57	530	345	235	186	4-22
6	150	58	530	345	241.5	216	4-22	61	590	380	270	216	4-(3/4)
8	200	64	620	395	298.5	270	4-22	73	650	410	330	270	4-(7/8)
10	250	71	680	425	362	324	4-25	83	750	470	387.5	324	4-(1)
12	300	81	800	495	432	381	4-25	92	860	545	451	381	4-(1-1/8)
14	350	92	880	555	476	413	4-29	117	940	590	514.5	413	4-(1-1/8)
16	400	102	950	590	540	470	4-(1)	133	990	640	571.5	470	4-(1-1/4)
18	450	114	1000	630	578	533	4-(1-1/8)	149	1100	690	628.5	533	4-(1-1/4)
20	500	127	1110	700	635	584	4-(1-1/8)	159	1200	740	686	584	4-(1-1/4)
24	600	154	1230	750	749.5	692	4-(1-1/4)	181	1360	850	813	692	4-(1-1/2)
28	700	165	1350	810	795.3	762	8-(3/4)	229	1430	870	857.2	787	4-(1-1/4)
32	800	190	1390	840	900.1	864	8-(3/4)	254	1570	950	977.9	902	4-(1-1/2)
36	900	203	1660	1000	1009.6	972	8-(7/8)	254	1750	1110	1089	1010	4-(1-5/8)
40	1000	216	1720	1080	1120.8	1080	8-(1)	300	1980	1200	1190.6	1114	4-(1-5/8)
48	1200	254	2080	1250	1335.1	1289	8-(1-1/8)	360	2130	1270	1416	1327	4-(1-7/8)
DN		600Lb						900Lb
Inch	mm	L	H	H1	D1	D2	Z-φ (M)d	L	H	H1	D1	D2	Z-Φ(M)d
2	50	43	355	230	127	92	4-(5/8)	一	一	一	一	一	一
3	80	54	480	290	168.3	127	4-(3/4)	一	一	一	一	一	一
4	100	64	510	320	215.9	157	4-(7/8)	一	一	一	一	一	一
5	125	76	590	380	266.7	186	4-(1)	一	一	一	一	一	一
6	150	78	620	400	292.1	216	4-(1)	104	760	460	317.5	216	4-(1-1/8)
8	200	102	730	460	349.2	270	4-(1-1/8)	112	850	530	393.7	270	4-(1-3/8)
10	250	117	870	550	431.8	324	4-(1-1/4)	135	980	635	469.9	324	4-(1-3/8)
12	300	140	930	600	489	381	4-(1-1/4)	170	1050	690	533.4	381	4-(1-3/8)
14	350	155	1005	630	527	413	4-(1-3/8)	173	1130	720	558.8	413	4-(1-1/2)
16	400	178	1135	705	603.2	470	4-(1-1/2)	210	1195	740	616	470	4-(1-5/8)
18	450	200	1200	750	654	533	4-(1-5/8)	228	1340	840	685.8	533	4-(1-7/8)
20	500	216	1270	780	723.9	584	4-(1-5/8)	250	1410	865	749.3	584	4-(2)
24	600	232	1440	880	838.2	692	4-(1-7/8)	275	1645	990	901.7	692	4-(2-1/2)

All data provided is for reference purposes only. For more details, please contact our technical staff.

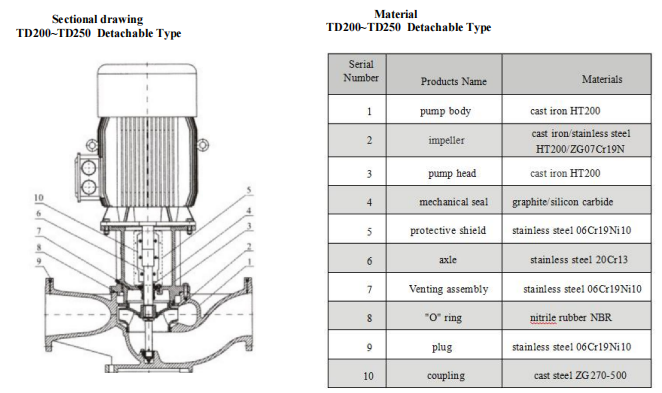

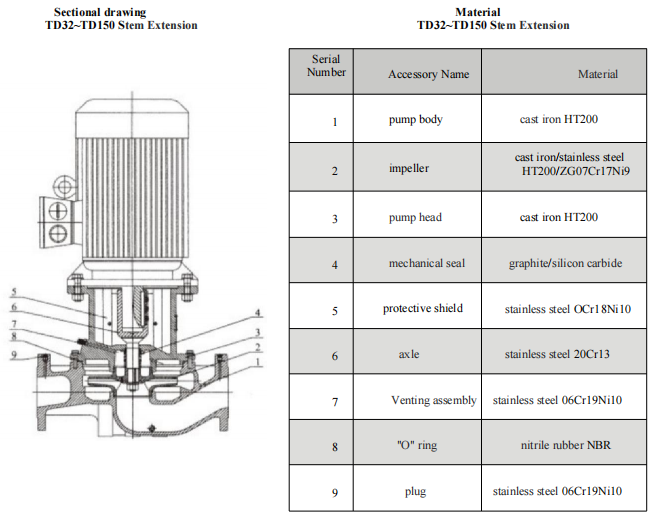

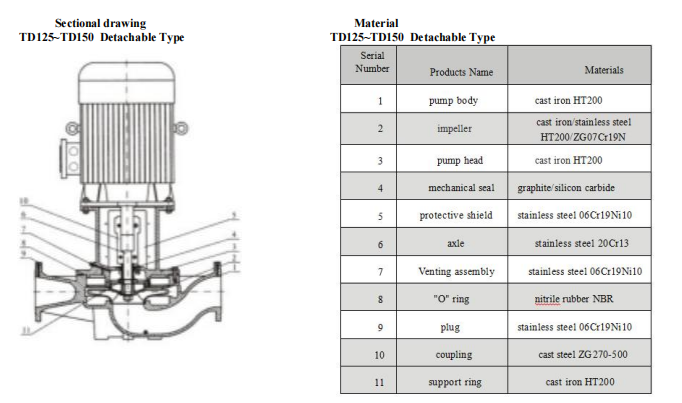

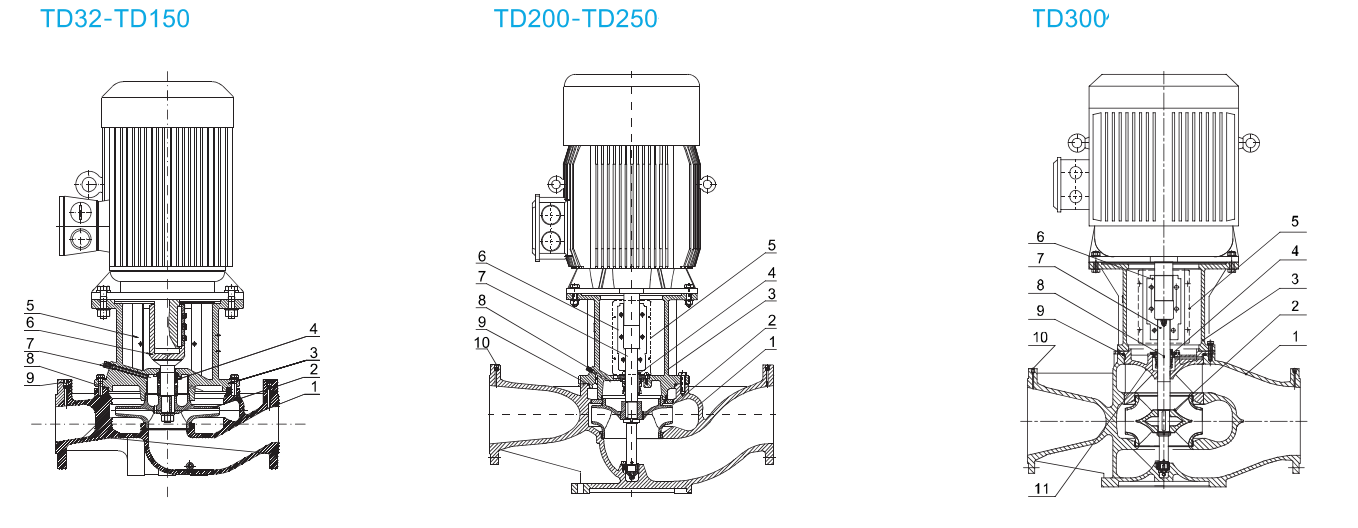

The following figure shows a detailed structural breakdown of this high flow pump, clearly labeled with the names of the major components and their location and function in the pump body.

TD32-TD150 material list			TD200-TD250 material list			TD300 material list
numbe	name of parts	materials	numbe	name of parts	materials	numbe	name of parts	materials
1	pump body	HT200	1	pump body	HT200	1	pump body	QT500-7
2	impeller	HT200/ZG07Cr19Ni9	2	impeller	HT200/ZG07Cr19Ni9	2	impeller	HT200/ZG07Cr19Ni9
3	pump head	HT200	3	pump head	HT200	3	pump head	HT200
4	mechanical seal	C/SiC	4	mechanical seal	C/SiC	4	mechanical seal	C/SiC
5	preventer plate	304	5	preventer plate	304	5	preventer plate	304
6	pump shaft	20Cr13	6	coupling	ZG270-500	6	coupling	ZG270-500
7	Vent assembly	304	7	pump shaft	20Cr13	7	pump shaft	20Cr13
8	"O" -shaped ring	NBR	8	Vent assembly	304	8	Vent assembly	304
9	plug	304	9	"O" -shaped ring	NBR	9	"O" -shaped ring	NBR
			10	plug	304	10	plug	304
						11	pump cover	QT500-7

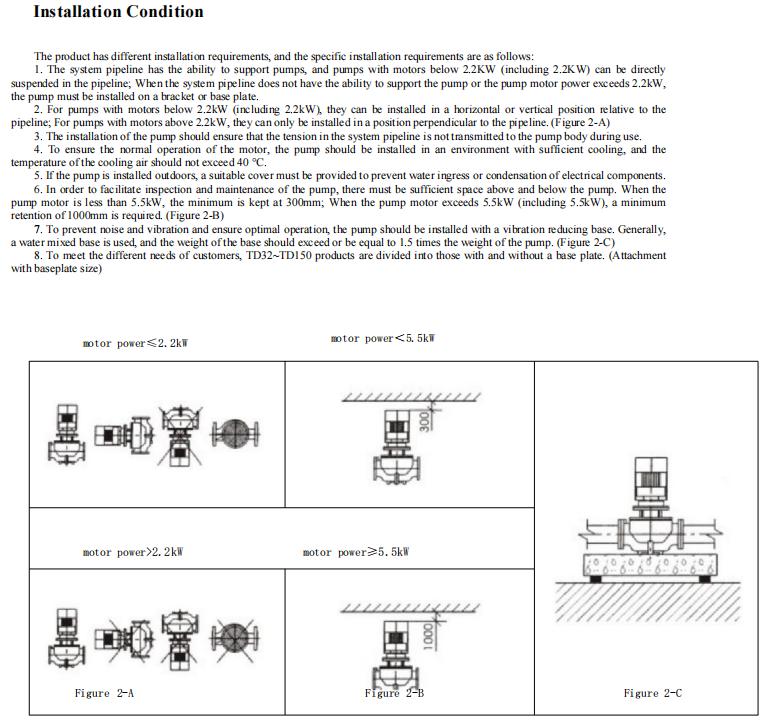

To ensure the best performance and long-term stable operation of the high flow hydraulic pump, please strictly follow the following installation steps and precautions for operation.

Installation Requirements:

The products have specific installation requirements, as detailed below:

1. The system piping must be capable of supporting the pump; for pumps driven by motors with a rated power ≤ 2.2 kW, the pump may be suspended directly within the piping;

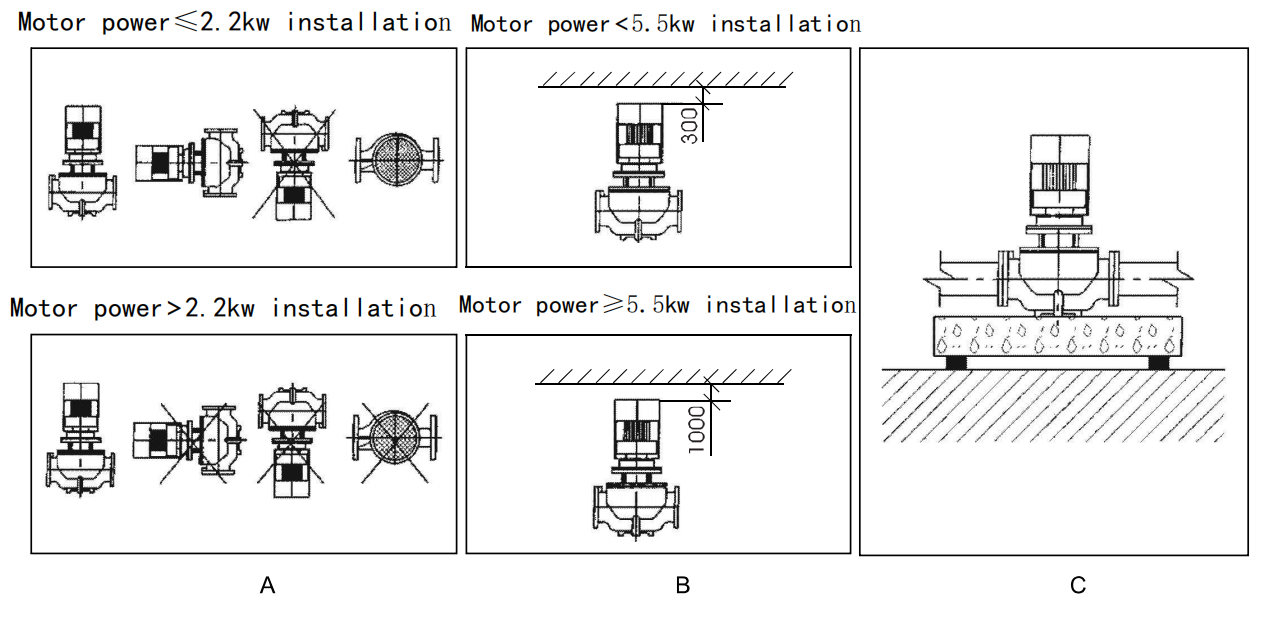

2. For pumps driven by motors with a rated power ≤ 2.2 kW, the pump may be installed horizontally or vertically within the operating piping; for pumps driven by motors with a rated power> 2.2 kW, the pump must be installed perpendicular to the horizontal plane within the operating piping. (Fig. 2-A)

3. During pump installation, it must be ensured that the tension in the system piping during operation does not transmit to the pump housing.

4. To ensure the proper operation of the motor, the pump shall be installed in an environment providing adequate cooling, and the temperature of the cooling air shall not exceed 40 °C.

5. If the pump is installed outdoors, an appropriate enclosure must be provided to prevent water ingress or condensation into electrical components.

6. To facilitate inspection and maintenance of the pump, sufficient clearance space shall be provided above and below the pump. The minimum clearance shall be 300 mm for pumps driven by motors with a rated power <5.5 kW, and 1,000 mm for pumps driven by motors with a rated power ≥ 5.5 kW. (Fig. 2-B)

7. To minimize noise and vibration and achieve optimal operating performance, a vibration isolation base shall be used during installation. A concrete base is typically employed, and the weight of the base shall be ≥ 1.5 × the weight of the pump. (Fig. 2-C)

8. To meet diverse customer requirements, the TD32–TD150 product range is available in two configurations: with a base plate and without a base plate. (Refer to the Appendix – Base Plate for dimensions.)

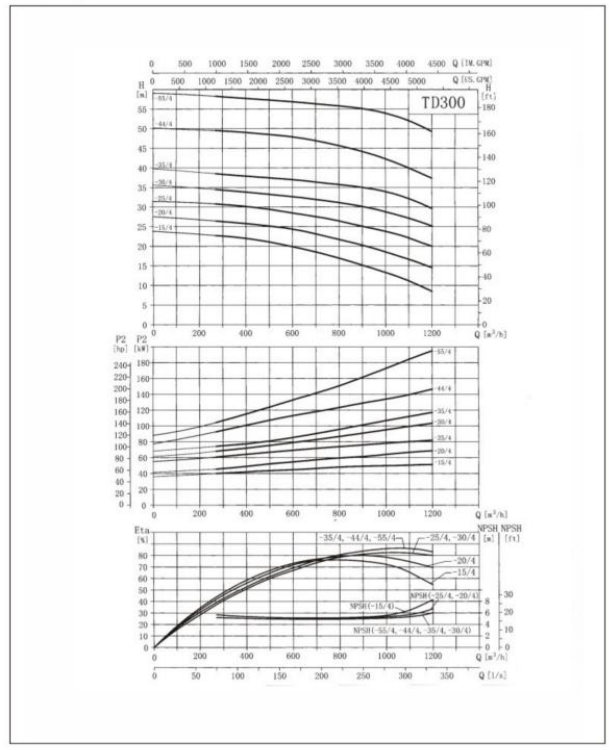

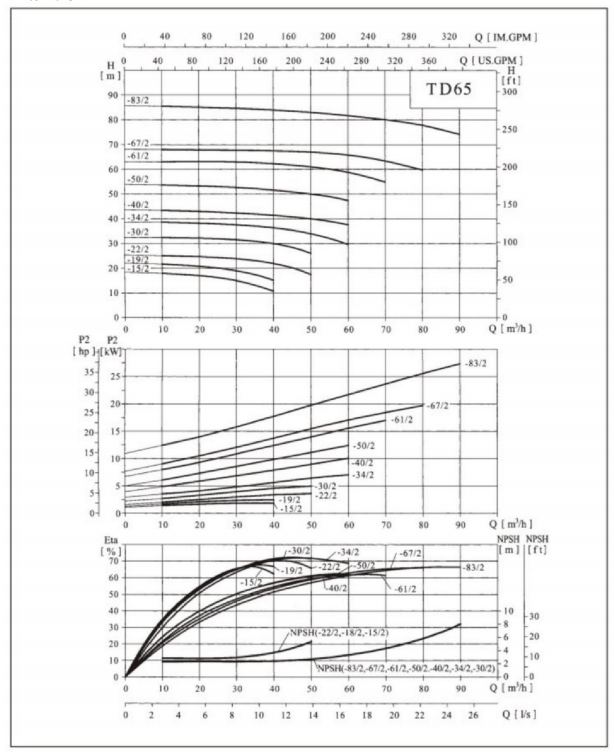

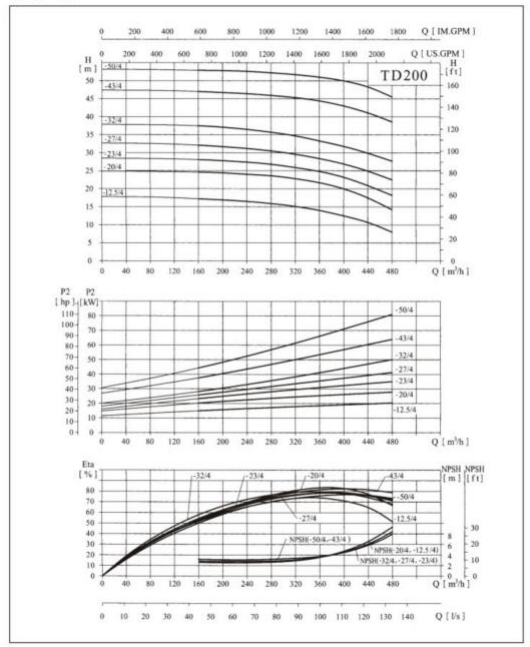

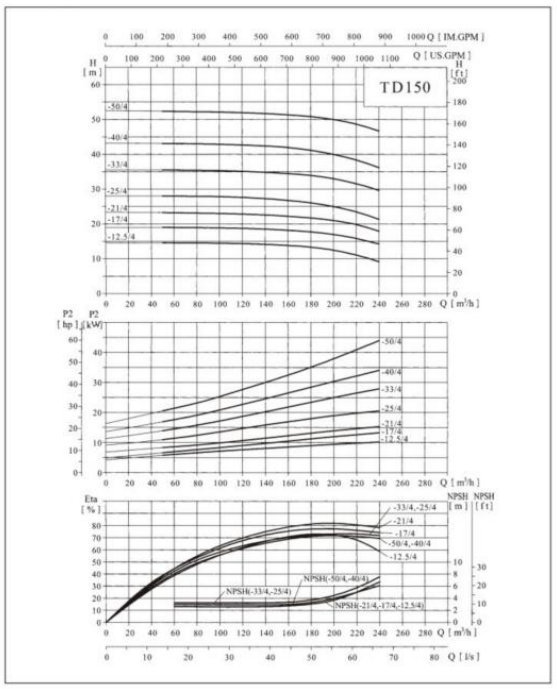

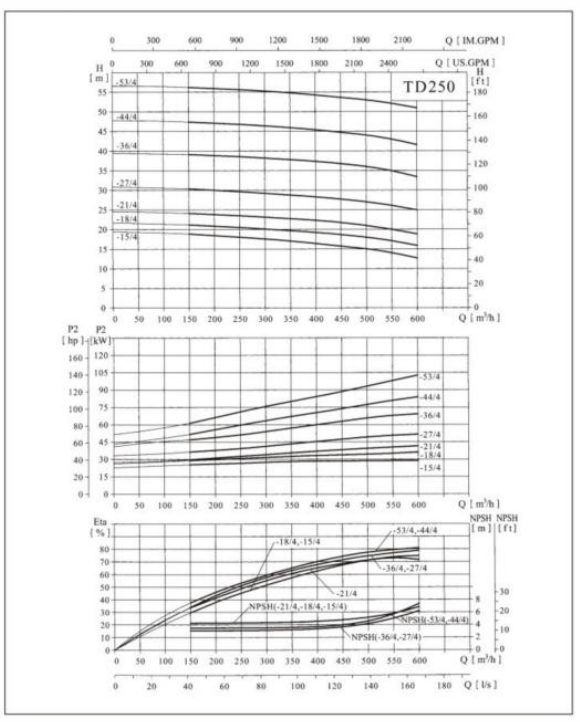

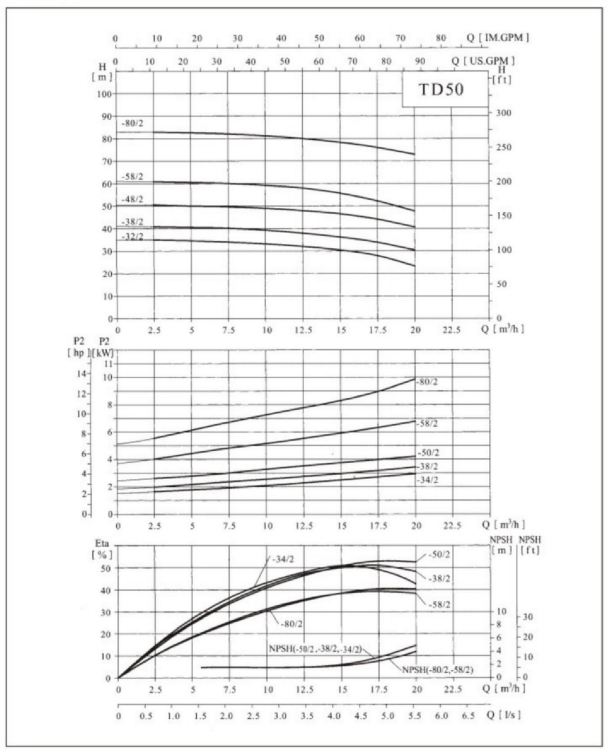

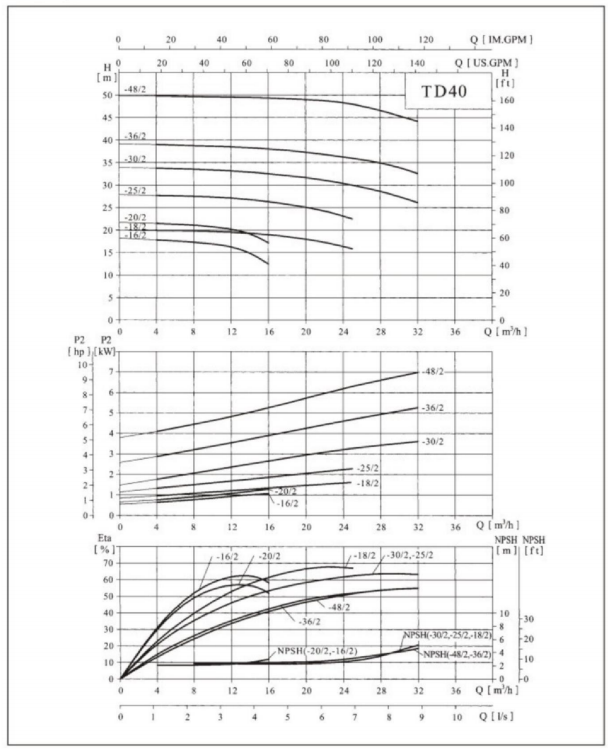

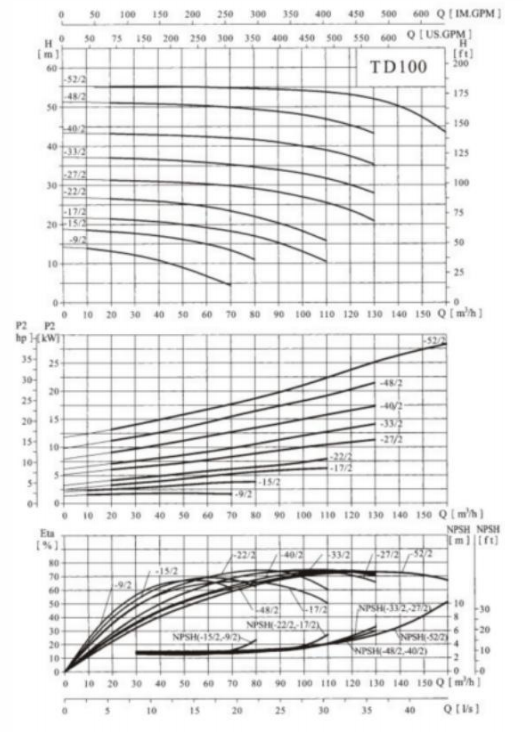

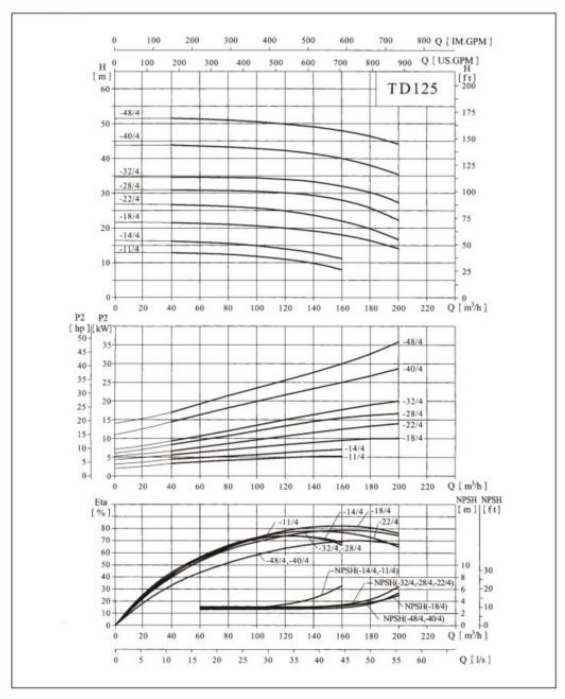

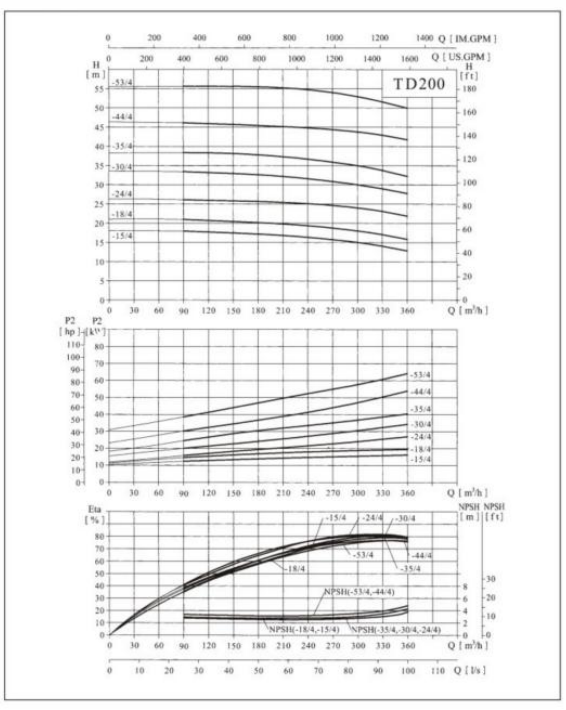

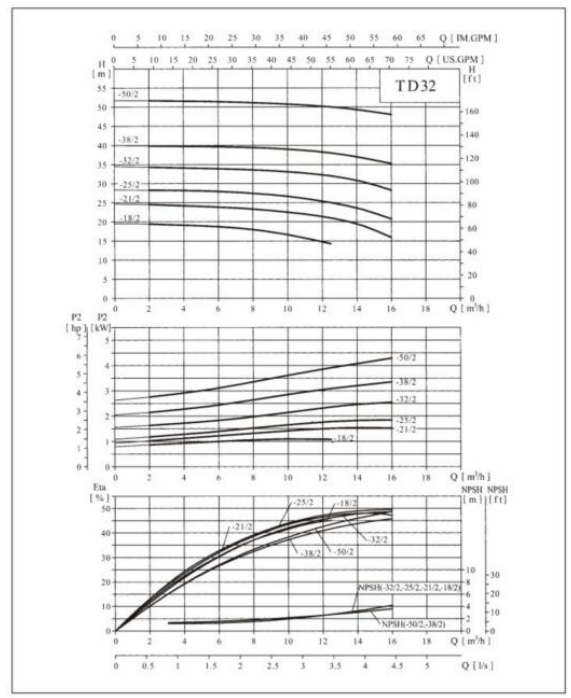

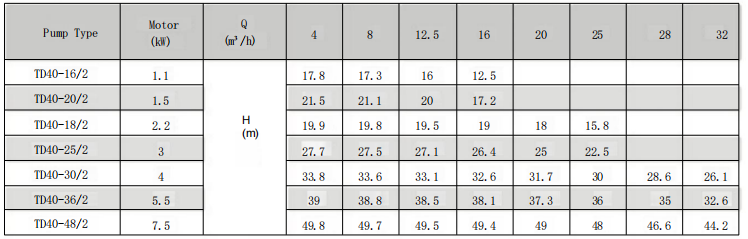

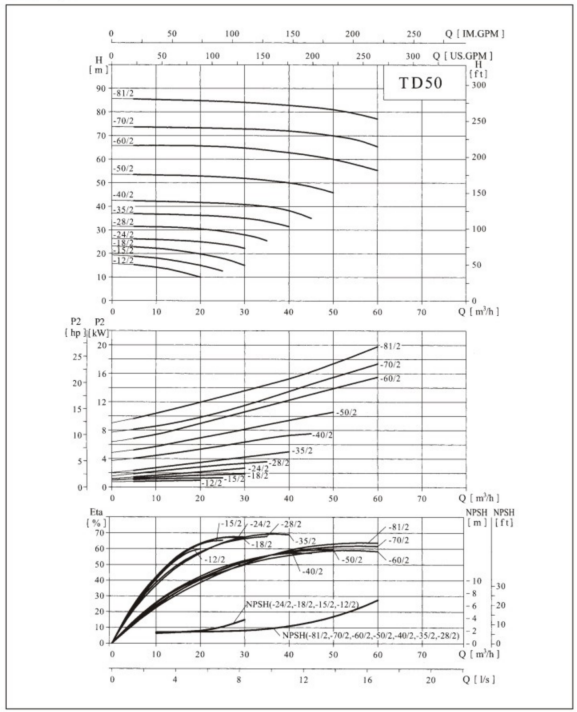

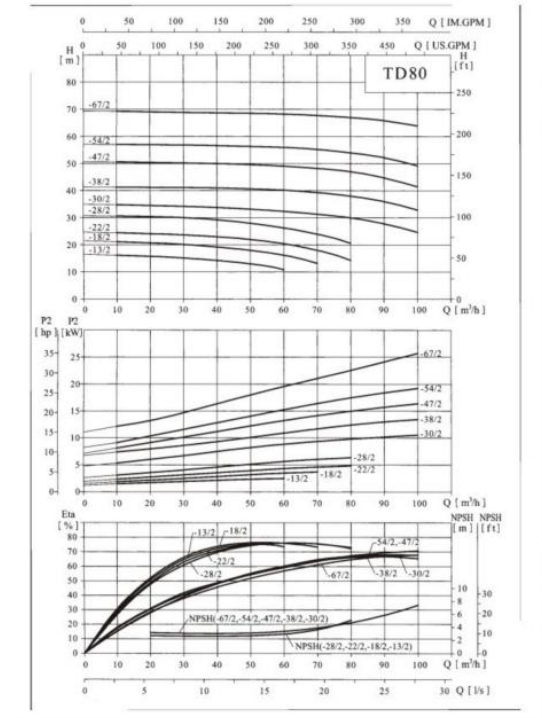

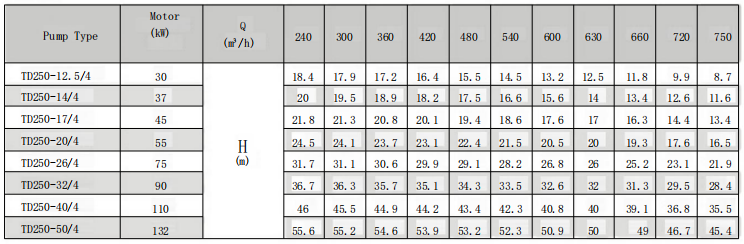

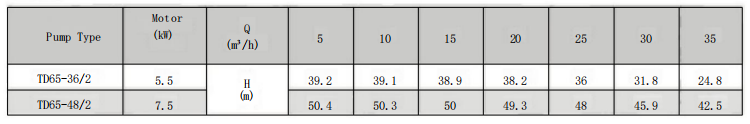

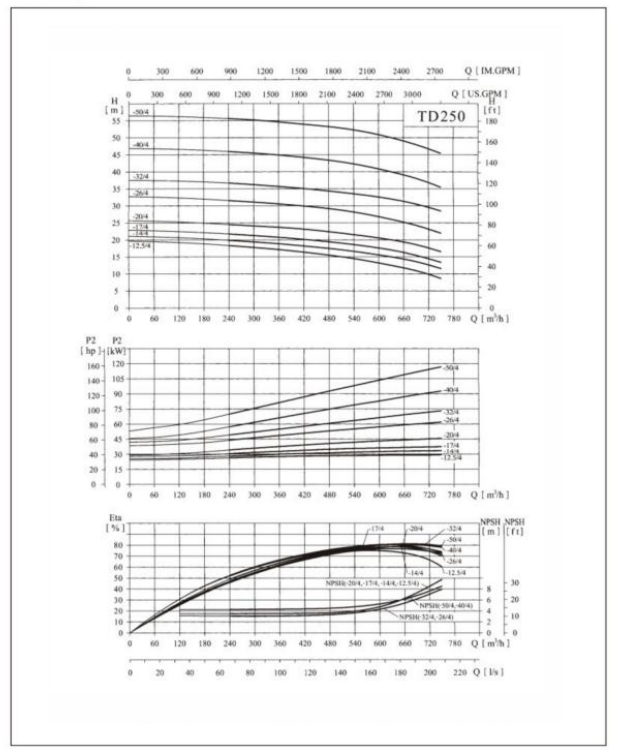

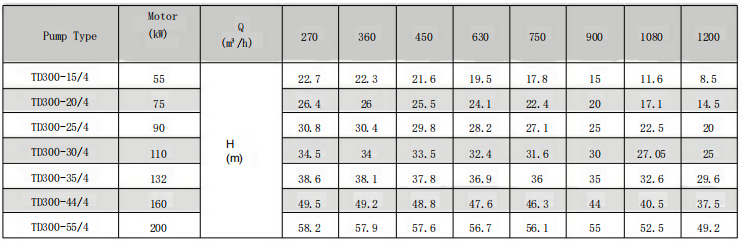

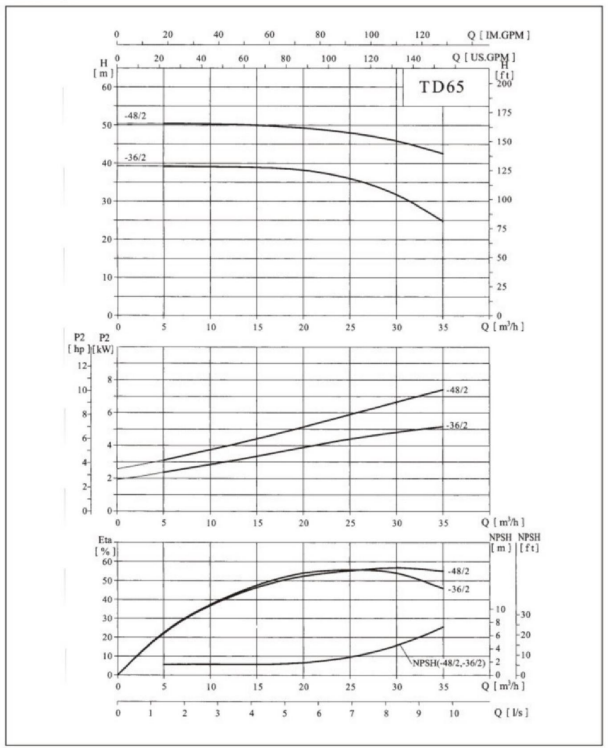

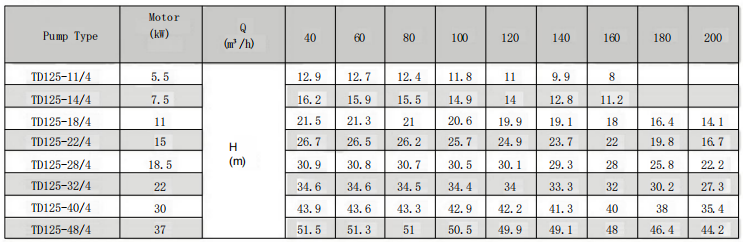

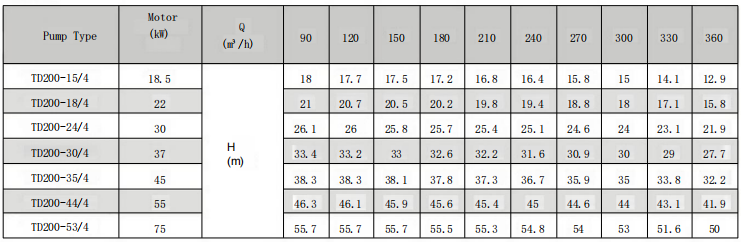

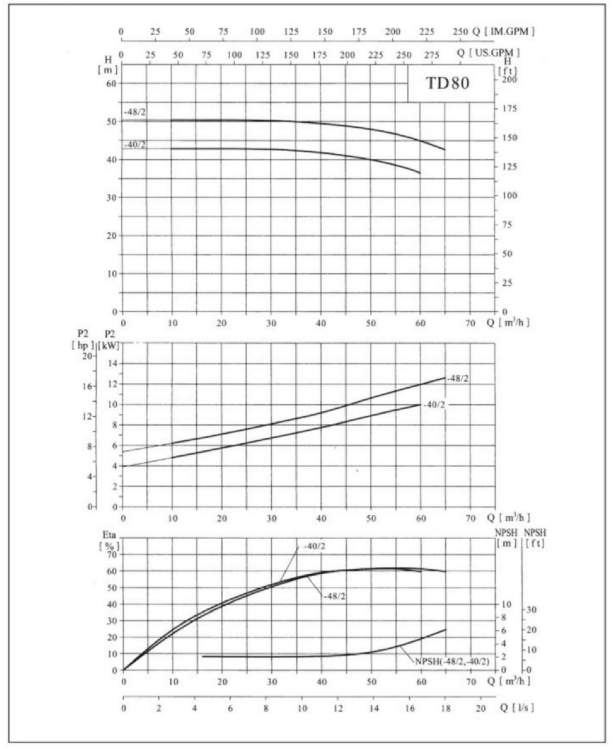

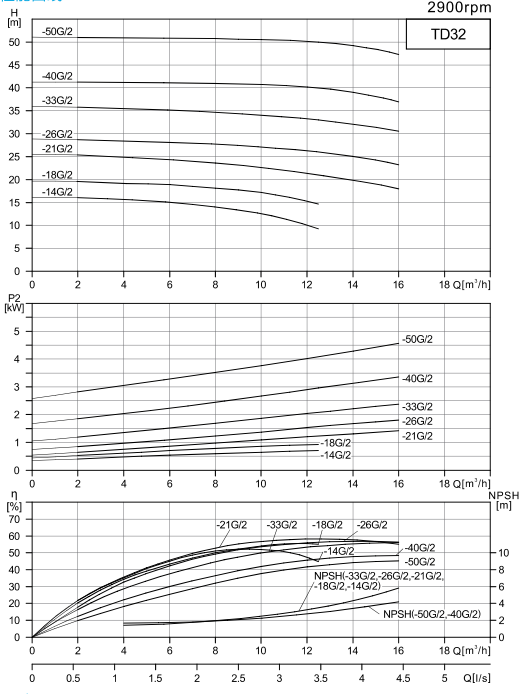

The performance curve graph visualizes the relationship between flow rate, head, power and efficiency of this water pump high flow under different working conditions, providing a basis for selection and operation.

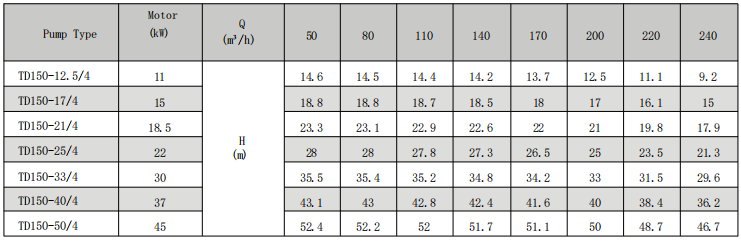

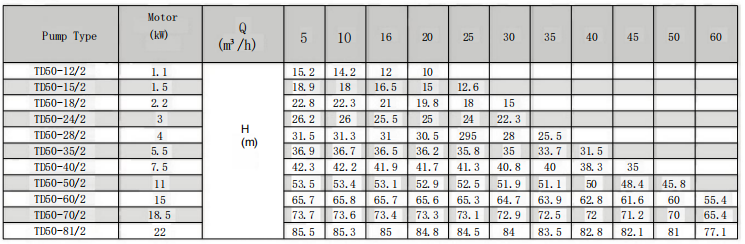

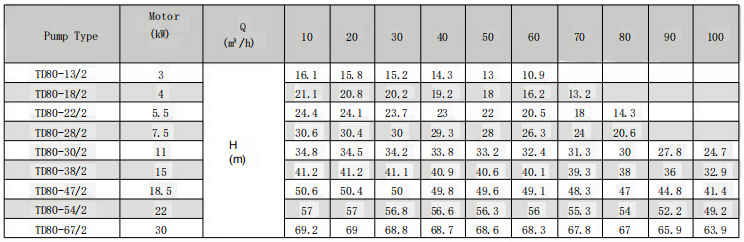

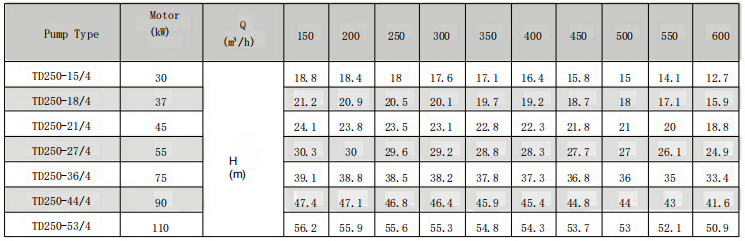

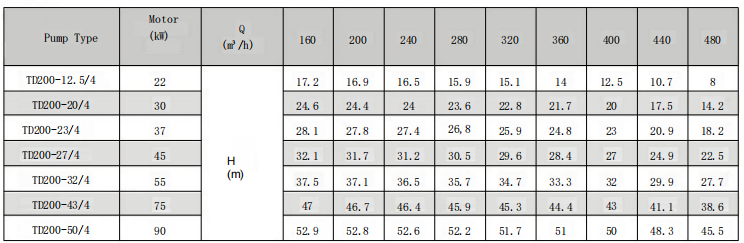

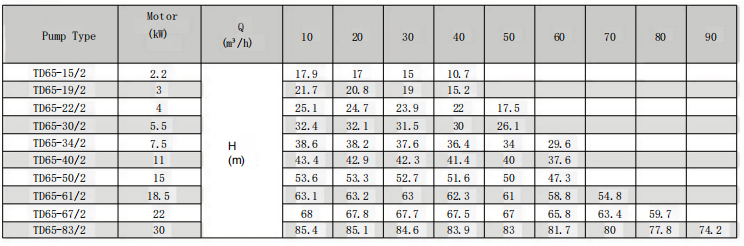

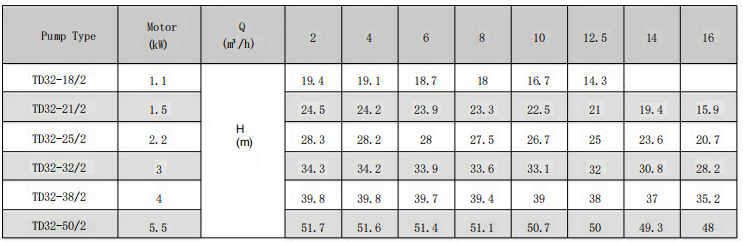

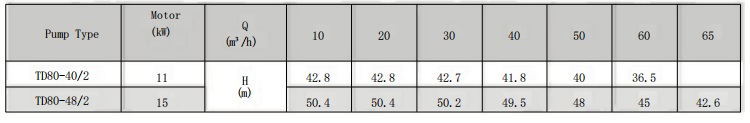

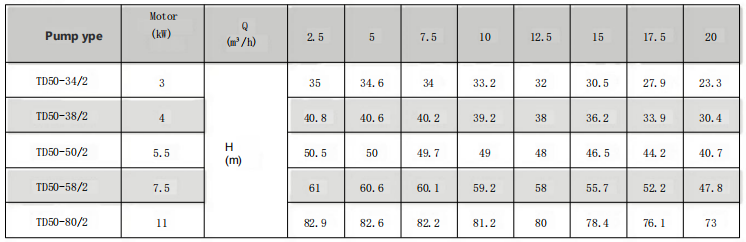

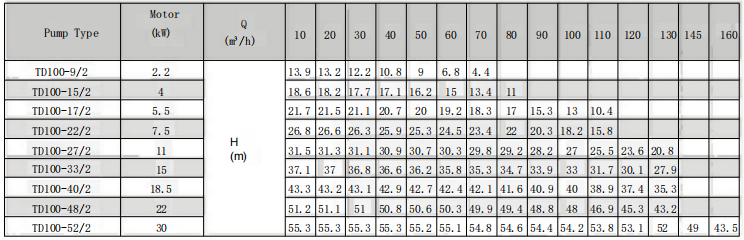

performance log
model	Motor(kW)	Q (m³ /h)	2	4	6	8	10	12.5	14	16
TD32-14G/2	0.75	H(m)	16	15.7	15.1	14	12.6	9.3
TD32-18G/2	1.1		19.6	19.3	18.9	18	17.2	14.6
TD32-21G/2	1.5		25.3	24.9	24.3	23.6	22.6	21	19.9	18
TD32-26G/2	2.2		28.7	28.4	28.1	27.7	27.1	26	25	23.2
TD32-33G/2	3		35.8	35.5	35.1	34.7	34.1	33	32.1	30.6
TD32-40G/2	4		41.3	41.2	41.1	41	40.7	40	39.1	37
TD32-50G/2	5.5		51	50.9	50.8	50.7	50.5	50	49.2	47.3

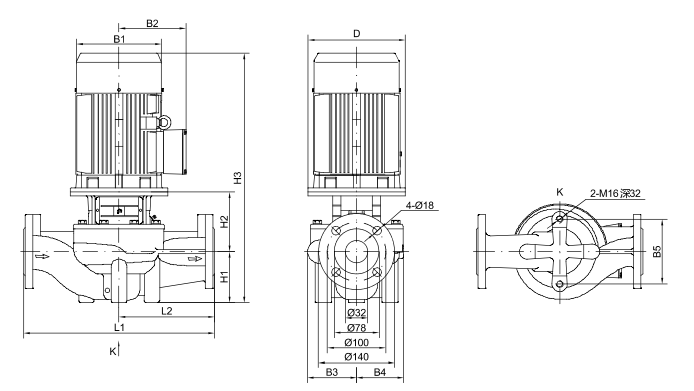

Size and weight
model	size(mm)											weight (kg)
	D	B1	B2	B3	B4	B5	H1	H2	H3	L1	L2
TD32-14G/2	120	151	125	101	101	144	90	135	469	320	160	33
TD32-18G/2	120	151	125	101	101	144	90	135	469	320	160	34
TD32-21G/2	140	171	137	101	101	144	90	137	514	320	160	38
TD32-26G/2	140	171	137	101	101	144	90	137	514	320	160	42
TD32-33G/2	160	196	150	109	109	144	90	145	572	340	170	52
TD32-40G/2	160	214	169	128	128	144	100	151	593	360	180	65
TD32-50G/2	200	257	190	128	128	144	100	173	656	360	180	84
Note: The dimensions of single-phase motors and flameproof motors have changed. For details, please consult our company!
