IHG Type Stainless Steel Vertical Pipeline Centrifugal Pump

Flow Range：1.5-1000m³/h
Head Range：5-150m
Motor Power：0.75-150kW
Inlet/Outlet Range：DN25-DN200

Send an inquiry

IHG stainless steel vertical pipeline centrifugal pump of WTY

WTY's IHG stainless steel vertical pipeline centrifugal pump, crafted entirely from stainless steel, is meticulously engineered for environments that demand exceptional corrosion resistance and high cleanliness standards. Its vertical and compact design allows for seamless direct installation within pipelines, optimizing space utilization and simplifying maintenance procedures. This pipeline pump, which can also be considered a satisfactory pipeline pump due to its optimal performance and adaptability, is ideally suited for a range of applications, including boosting water pressure in high-rise buildings, facilitating air conditioning circulation systems, and serving the chemical industry—much like the trusted functionality seen in a horizontal end-suction centrifugal pump, centrifugal water pump, or the structural clarity of a diagram of a centrifugal pump.

Application Scenarios

Civil and CommercialBuildings

High-rise building water supply pressurization, air conditioning circulating water systems, floor heating hot water circulation, etc.

Industrial Process Transportation

Chemical medium transportation (such as acid and alkali solutions), pharmaceutical pure water circulation, food-grade liquid transportation, etc.

Municipal and Environmental Protection Engineering

Reclaimed water reuse in sewage treatment plants, pressurization of urban water supply networks, agricultural irrigation systems, etc.

Product Advantage

StainlessSteelMaterials

The pump body, impeller and key components are made of 304/316L stainless steel, which has excellent resistance to acids, alkalis and corrosion. It is especially suitable for fields such as chemical engineering, pharmaceuticals and food that have strict requirements for the purity of the medium

No Leakage Design

For applications like a horizontal end-suction centrifugal pump, the mechanical seal or containerized mechanical seal structure, combined with high-quality sealing materials, effectively prevents medium leakage, extends seal life, and reduces maintenance costs.

IHG Vertical Pipeline Centrifugal Pump VS Ordinary Centrifugal Pumps

IHG Vertical Pipeline Centrifugal Pump VS Ordinary Centrifugal Pumps
Item	IHG Vertical Pipeline Centrifugal Pump	Ordinary Centrifugal Pumps
Structure	Vertical inline structure, inlet and outlet on the same centerline, compact footprint	Mostly horizontal structure, separate inlet & outlet, requires larger installation space
Installation	Directly connected to pipeline, simple vertical mounting	Needs foundation alignment, complicated horizontal installation
Material	Stainless steel flow parts, good corrosion resistance	Cast iron material generally, weak anti-corrosion performance
Operation	Stable running, low vibration & low noise	Relatively obvious vibration, higher noise
Maintenance	Convenient disassembly, easy inspection and repair	Requires pipeline removal for overhaul
Typical Applications	HVAC circulation, industrial pipeline water transfer, water supply boosting	General water delivery, simple liquid transfer

WTY Conclusion: IHG vertical pipeline centrifugal pump saves space and is easy to install, perfect for closed-loop circulation systems. Ordinary centrifugal pumps are cost-effective for basic liquid transportation.

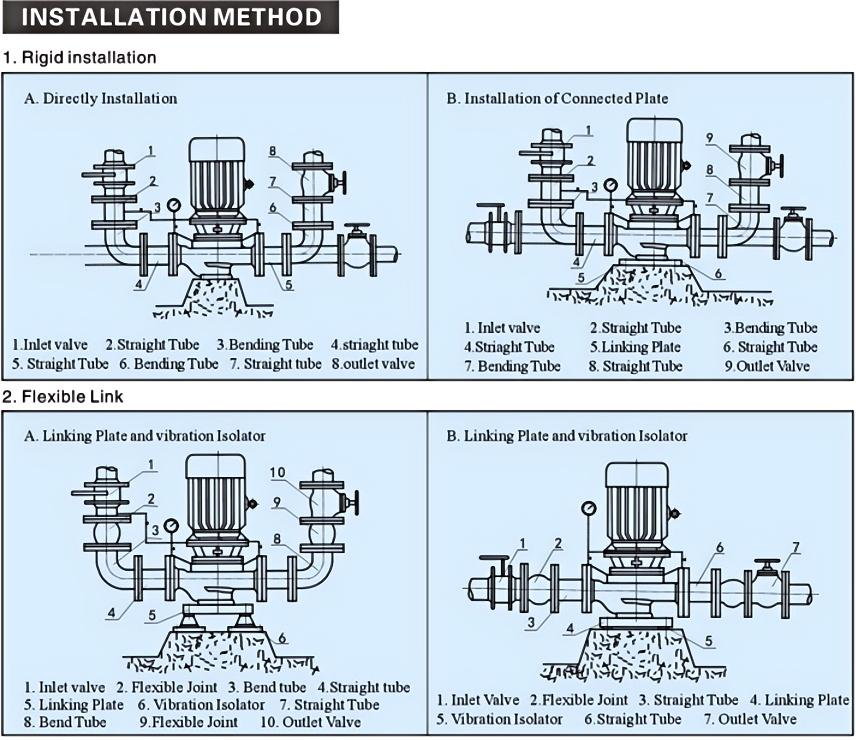

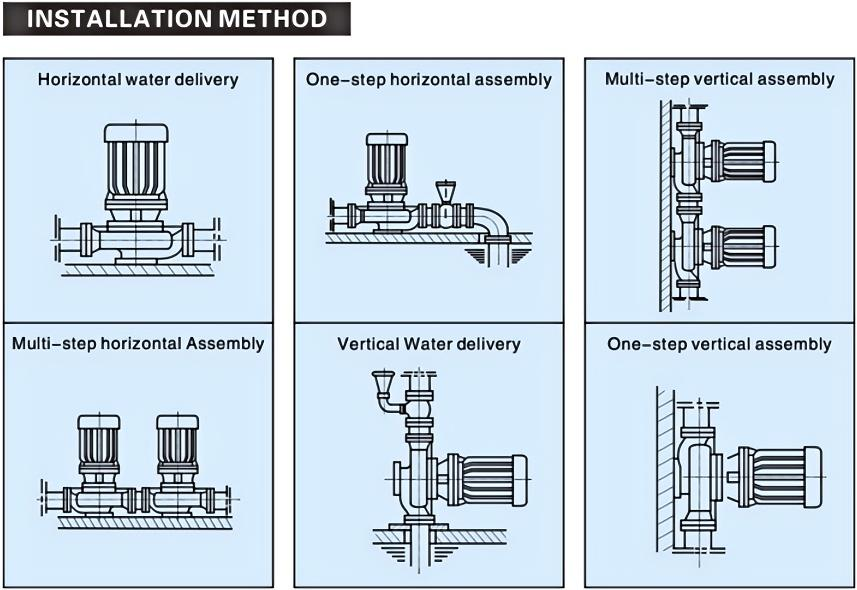

This section outlines the core technical parameters of the IHG vertical pipeline centrifugal pump, defining its operational specifications and compliance standards.

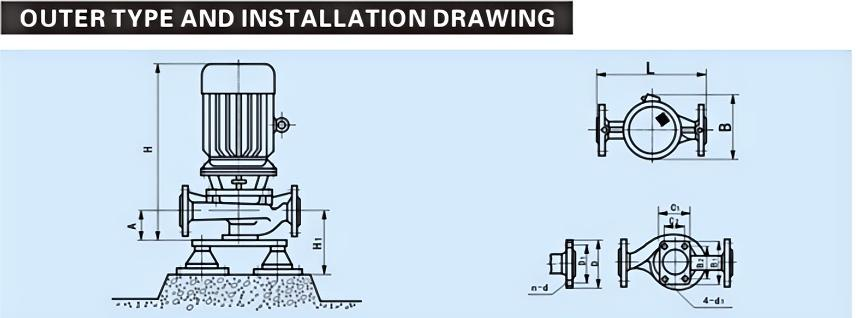

Main connection dimensions
DN		150Lb						300Lb
Inch	mm	L	H	H1	D1	D2	Z-φ(M)d	L	H	H1	D1	D2	Z-φ(M)d
2	50	43	300	210	120.5	92	4-19	43	330	230	127	92	4-19
3	80	49	340	230	152.5	127	4-19	49	420	270	168.5	127	4-22
4	100	54	400	265	190.5	157	4-19	54	490	305	200	157	4-22
5	125	57	480	325	216	186	4-22	57	530	345	235	186	4-22
6	150	58	530	345	241.5	216	4-22	61	590	380	270	216	4-(3/4)
8	200	64	620	395	298.5	270	4-22	73	650	410	330	270	4-(7/8)
10	250	71	680	425	362	324	4-25	83	750	470	387.5	324	4-(1)
12	300	81	800	495	432	381	4-25	92	860	545	451	381	4-(1-1/8)
14	350	92	880	555	476	413	4-29	117	940	590	514.5	413	4-(1-1/8)
16	400	102	950	590	540	470	4-(1)	133	990	640	571.5	470	4-(1-1/4)
18	450	114	1000	630	578	533	4-(1-1/8)	149	1100	690	628.5	533	4-(1-1/4)
20	500	127	1110	700	635	584	4-(1-1/8)	159	1200	740	686	584	4-(1-1/4)
24	600	154	1230	750	749.5	692	4-(1-1/4)	181	1360	850	813	692	4-(1-1/2)
28	700	165	1350	810	795.3	762	8-(3/4)	229	1430	870	857.2	787	4-(1-1/4)
32	800	190	1390	840	900.1	864	8-(3/4)	254	1570	950	977.9	902	4-(1-1/2)
36	900	203	1660	1000	1009.6	972	8-(7/8)	254	1750	1110	1089	1010	4-(1-5/8)
40	1000	216	1720	1080	1120.8	1080	8-(1)	300	1980	1200	1190.6	1114	4-(1-5/8)
48	1200	254	2080	1250	1335.1	1289	8-(1-1/8)	360	2130	1270	1416	1327	4-(1-7/8)
DN		600Lb						900Lb
Inch	mm	L	H	H1	D1	D2	Z-φ (M)d	L	H	H1	D1	D2	Z-Φ(M)d
2	50	43	355	230	127	92	4-(5/8)	一	一	一	一	一	一
3	80	54	480	290	168.3	127	4-(3/4)	一	一	一	一	一	一
4	100	64	510	320	215.9	157	4-(7/8)	一	一	一	一	一	一
5	125	76	590	380	266.7	186	4-(1)	一	一	一	一	一	一
6	150	78	620	400	292.1	216	4-(1)	104	760	460	317.5	216	4-(1-1/8)
8	200	102	730	460	349.2	270	4-(1-1/8)	112	850	530	393.7	270	4-(1-3/8)
10	250	117	870	550	431.8	324	4-(1-1/4)	135	980	635	469.9	324	4-(1-3/8)
12	300	140	930	600	489	381	4-(1-1/4)	170	1050	690	533.4	381	4-(1-3/8)
14	350	155	1005	630	527	413	4-(1-3/8)	173	1130	720	558.8	413	4-(1-1/2)
16	400	178	1135	705	603.2	470	4-(1-1/2)	210	1195	740	616	470	4-(1-5/8)
18	450	200	1200	750	654	533	4-(1-5/8)	228	1340	840	685.8	533	4-(1-7/8)
20	500	216	1270	780	723.9	584	4-(1-5/8)	250	1410	865	749.3	584	4-(2)
24	600	232	1440	880	838.2	692	4-(1-7/8)	275	1645	990	901.7	692	4-(2-1/2)

All data provided is for reference purposes only. For more details, please contact our technical staff.

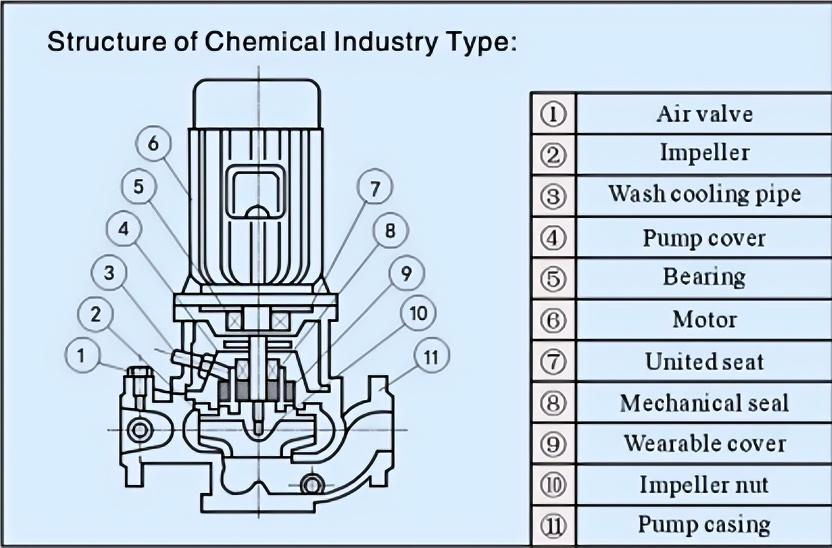

The structural analysis diagram identifies components within the IHG stainless steel pump assembly, as annotated in the exploded diagram.

Structure specification for IHG Series:
1. Wearable cover is set before mechanical seal. Sealing cooling and washing hole are setin pump cover which are suitable to transport volatile or ery stal liquid. It can prolong the life of mechanical seal when liquid contains ting grain.
2. The sectional distribution between pump and motor's bearing makes sure the axes' operating precision and improvement of The reliability of seal.
3. Mechanical seals are made from hard alloys.

Performance characteristics of this centrifugal pump are graphically represented, illustrating flow, head, and efficiency correlations.

performance log
model	Motor(kW)	Q (m³ /h)	2	4	6	8	10	12.5	14	16
IHG32-14G/2	0.75	H(m)	16	15.7	15.1	14	12.6	9.3
IHG32-18G/2	1.1		19.6	19.3	18.9	18	17.2	14.6
IHG32-21G/2	1.5		25.3	24.9	24.3	23.6	22.6	21	19.9	18
IHG32-26G/2	2.2		28.7	28.4	28.1	27.7	27.1	26	25	23.2
IHG32-33G/2	3		35.8	35.5	35.1	34.7	34.1	33	32.1	30.6
IHG32-40G/2	4		41.3	41.2	41.1	41	40.7	40	39.1	37
IHG32-50G/2	5.5		51	50.9	50.8	50.7	50.5	50	49.2	47.3

Size and weight
model	size(mm)											weight (kg)
	D	B1	B2	B3	B4	B5	H1	H2	H3	L1	L2
IHG32-14G/2	120	151	125	101	101	144	90	135	469	320	160	33
IHG32-18G/2	120	151	125	101	101	144	90	135	469	320	160	34
IHG32-21G/2	140	171	137	101	101	144	90	137	514	320	160	38
IHG32-26G/2	140	171	137	101	101	144	90	137	514	320	160	42
IHG32-33G/2	160	196	150	109	109	144	90	145	572	340	170	52
IHG32-40G/2	160	214	169	128	128	144	100	151	593	360	180	65
IHG32-50G/2	200	257	190	128	128	144	100	173	656	360	180	84
Note: The dimensions of single-phase motors and flameproof motors have changed. For details, please consult our company!
