Head Range：5-150m Motor Power：0.75-150kW Inlet/Outlet Range：DN25-DN200 ISG Type Cast Iron Vertical Pipeline Centrifugal Pump
Flow Range：1.1-1200m³/h
Head Range：5-150m
Motor Power：0.75-150kW
Inlet/Outlet Range：DN25-DN200
Submersible Depth：0.5-5m
Head Range：5-150m
Motor Power：0.75-150kW
Inlet/Outlet Range：DN25-DN200
Submersible Depth：0.5-5m
Send an inquiry

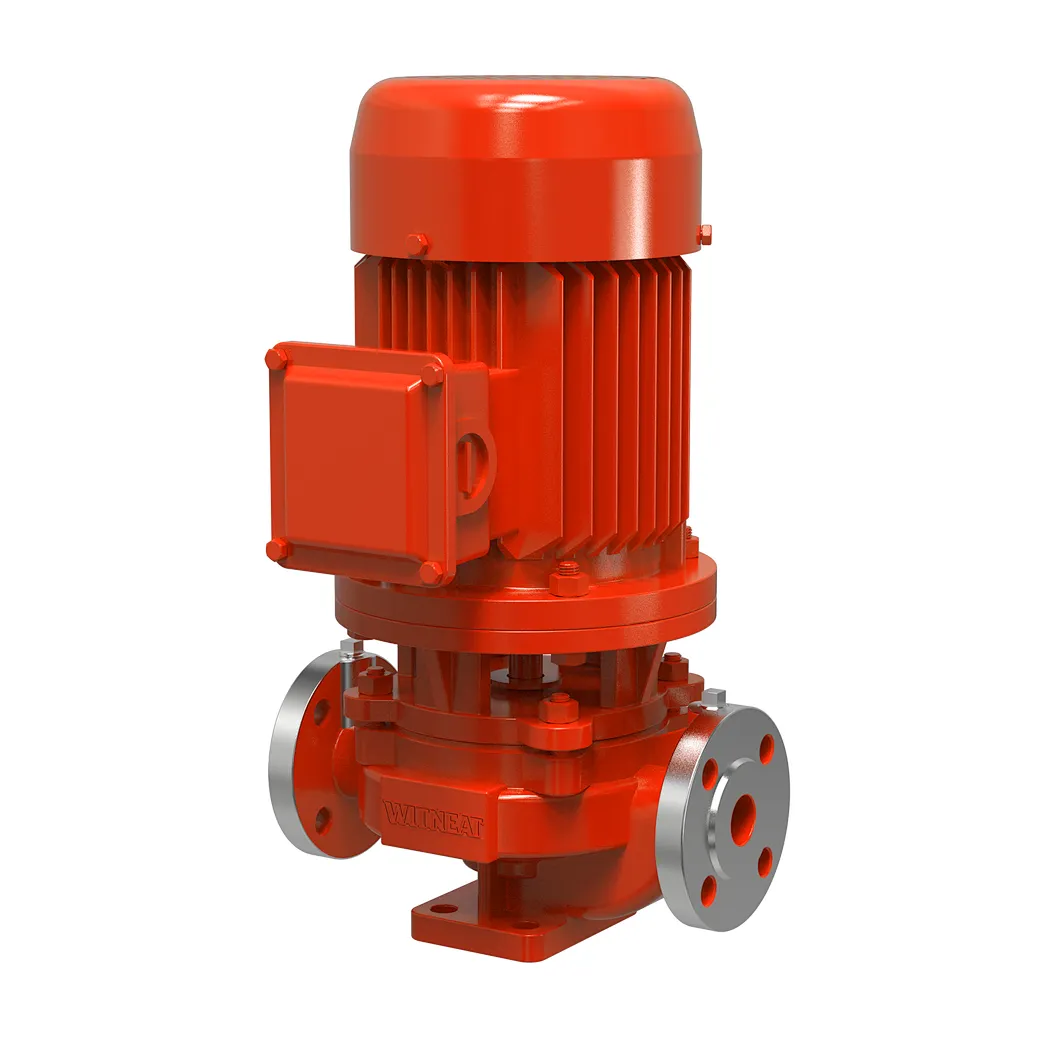

WYT has introduced the ISG vertical pipeline centrifugal pump, a high-performance pipeline pump that can also be regarded as a satisfactory pipeline pump due to its optimal operational characteristics—with performance reflected in a well-defined centrifugal pump curve. This pump is a single-stage, single-suction vertical pipeline centrifugal pump featuring a vertical structure. It boasts an inlet and outlet of the same caliber, both positioned along the same centerline, allowing for direct installation within the pipeline system. The ISG pump is renowned for its high efficiency and energy-saving capabilities, coupled with low noise levels and reliable performance, making it a trusted choice as a centrifugal fire pump in fire protection applications. These attributes make it a popular choice across various applications, including industrial and urban water supply and drainage systems, high-rise building water supply, and fire fighting pressure applications, where consistent and efficient fluid transfer is essential.
Structural Features
- Vertical compact design
The pump is of vertical structure, with the same caliber of inlet and outlet and located on the same centerline—a design commonly adopted for centrifugal fire pumps—it can be directly installed in the pipeline without additional pump room, which is convenient and space-saving for installation.
- High-efficiency impeller system
The impeller is directly mounted on the long shaft of the motor, with short axial dimensions, compact structure, and reasonable configuration of the pump and motor bearings, which can effectively balance the radial and axial loads generated by the pump operation to ensure smooth pump operation, low vibration and low noise.
Product Advantages
- Medium compatibility
It can convey clear water, mildly corrosive liquids (such as circulating cooling water), liquids containing fine sand (customized wear-resistant seals are required), and is suitable for industrial circulating water, sewage pre-treatment and other scenarios.
- Leak-free design
Mechanical seal or assembled mechanical seal structure, with high-quality sealing materials, effectively prevent media leakage, extend seal life and reduce maintenance costs—making it a reliable choice for applications such as a centrifugal fire pump.
Application Scenarios
- Industrial and urban water supply and drainage
It is used for conveying clear water or liquids of similar nature to meet the needs of industrial production and urban water supply.
- Pressurized water supply for high-rise buildings
Provide stable water pressure for high-rise buildings to ensure the water demand of residents.
- Garden sprinkler irrigation
Used in garden irrigation system to realize automatic sprinkler irrigation.
- HVACR Circulation
Used for circulating water delivery for air conditioning systems and refrigeration equipment.
Service Assurance
- Accurate demand matching
Free on-site demand analysis, customized flow, pressure and piping configuration scheme;
- Rapid delivery response
Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;
- Flexible warranty policy
1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.
