Head Range：0-70 m Inlet/Outlet Range：DN15-DN80 YGSL Type Cast Iron Pneumatic Diaphragm Pump
Head Range：0-70 m
Inlet/Outlet Range：DN15-DN80

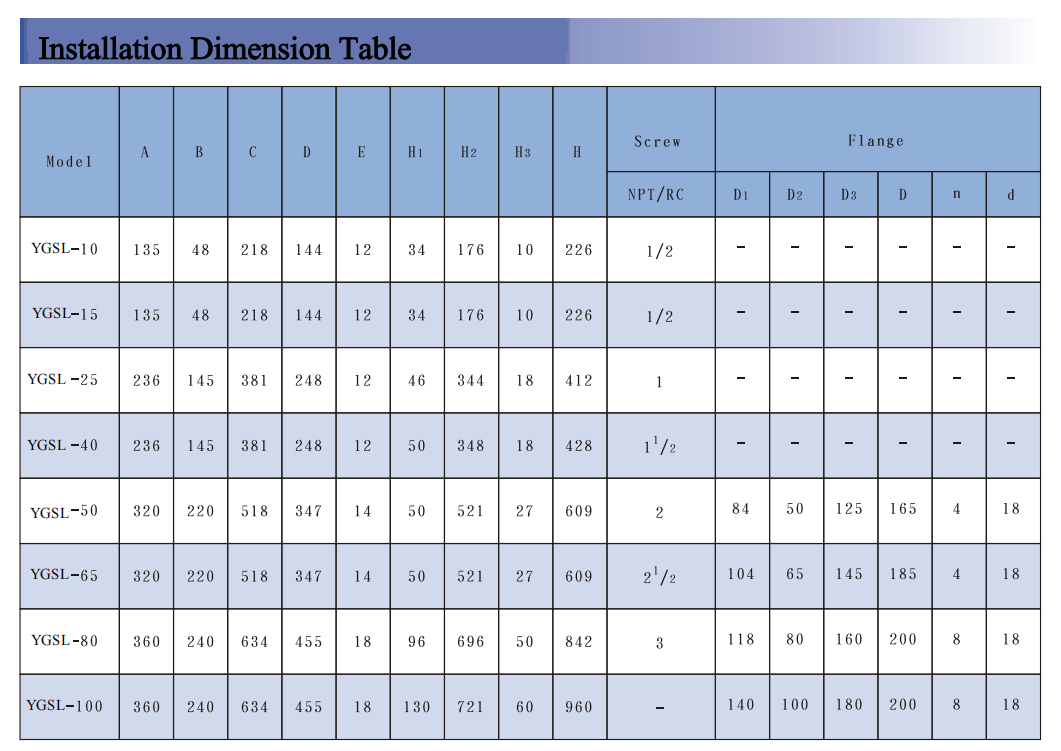

Product Feature：Ingersoll Rand standard exit
Working Principle
- Leak-free conveying
The pneumatic diaphragm pump uses compressed air as the power source. It drives the alternating reciprocating deformation of the double diaphragms through the conversion of pneumatic and mechanical energy, achieving leak-free fluid transportation.
- Diaphragm linkage
Compressed air periodically switches the direction of the air path through the distribution valve, pushing one side of the diaphragm to compress (discharge the fluid) while the other side of the diaphragm expands (draw in the fluid).
- One-way valve control
The medium flows in one direction through a one-way ball valve or plate valve, forming a continuous liquid suction and discharge cycle.
Product Advantage
- No Leakage Transportation
The diaphragm completely isolates the medium from the pneumatic system, avoiding the risk of chemical corrosion or gas leakage.
- Self-priming Capacity
The self-priming height can reach 5 meters, and it can draw liquid from underground tanks or long-distance pipelines without the need for priming pumps—offering suction performance comparable to an air operated double diaphragm pump.
- Anti-idling Design
When the flow is cut off, the diaphragm stops moving—just like in an air operated double diaphragm pump—to prevent the pump body from overheating or being damaged.
Application Scenarios
- Transportation of Flammable and ExplosiveMedia
Crude oil, gasoline, diesel, liquefied gas, solvent oil, toluene, xylene, etc.
- High-risk ProcessScenarios
Oil unloading at oil depots, loading and unloading of oil tankers, and waste liquid recovery in oil refineries.
- Underground Drainage and SlagRemoval
Accumulated water in the upper and lower aisles of the coal mining face, oil stains in the compressor room, and wastewater containing coal dust and methane.
Service Assurance
- Accurate demand matching
Free on-site demand analysis, customized flow, pressure and piping configuration scheme;
- Rapid delivery response
Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;
- Flexible warranty policy
1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.
