WYTDBY

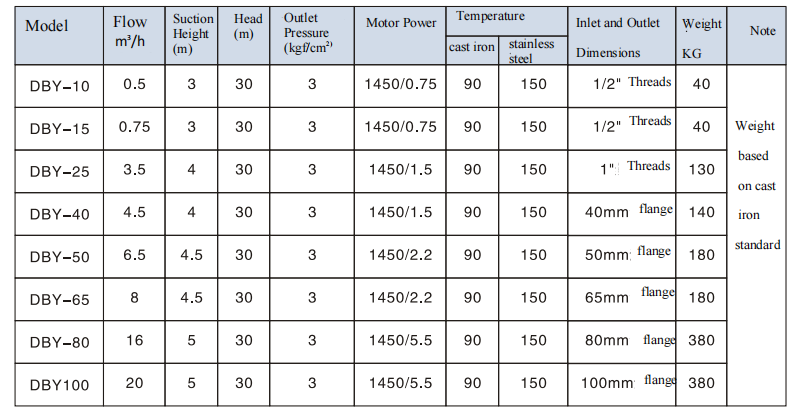

Head Range：20-80m Motor Power：0.37-15kW Inlet/Outlet Range：DN15-DN80 DBY Type Electric Diaphragm Pump
Head Range：20-80m
Motor Power：0.37-15kW
Inlet/Outlet Range：DN15-DN80
Working Principle

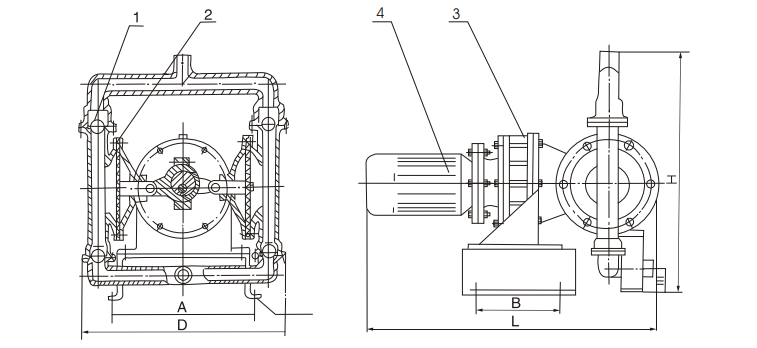

- Drive Mechanism
The motor drives the crankshaft to rotate through the reduction gearbox. The circular motion at the end of the crankshaft is converted into the axial movement of the sliding rod through the reversing mechanism, driving the diaphragm to reciprocate in the pump chamber.
- Diaphragm Movement
The diaphragm movement changes the volume of the pump chamber, forcing the four check ball valves to open and close alternately, thereby achieving the suction and discharge of the liquid.
Product Advantage
- Self-priming Capacity
No priming water is required, and the self-priming height can reach up to 3 meters—similar to the reliable suction capability of an electric diaphragm pump, making it as efficient as an electrically operated diaphragm pump or any top-tier diaphragm pump electric model.
- Medium Compatibility
It can transport strong acids, strong alkalis, highly toxic, flammable and explosive, high-viscosity and particle-containing media.
- Operational Reliability
No shaft seal design, extended diaphragm life, and support for no-load operation.
Application Scenarios
- Chemical Engineering and Pharmaceuticals
Conveying highly corrosive media and highly toxic materials.
- Food and Bioengineering
Conveying high-viscosity foods (such as honey, chocolate, jam) and sanitary media (such as hop syrup, syrup).
- Environmental Protection and WastewaterTreatment
Suction of wastewater containing particles (such as sediment from mines, tunnels, and sewers) and highly corrosive waste liquid.
- Construction and Engineering
Emergency scenarios such as slurry drainage at construction sites, flood control and drainage, and clearance of oil tankers and barges.
Service Assurance
- Accurate demand matching
Free on-site demand analysis, customized flow, pressure and piping configuration scheme;
- Rapid delivery response
Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;
- Flexible warranty policy
1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.
