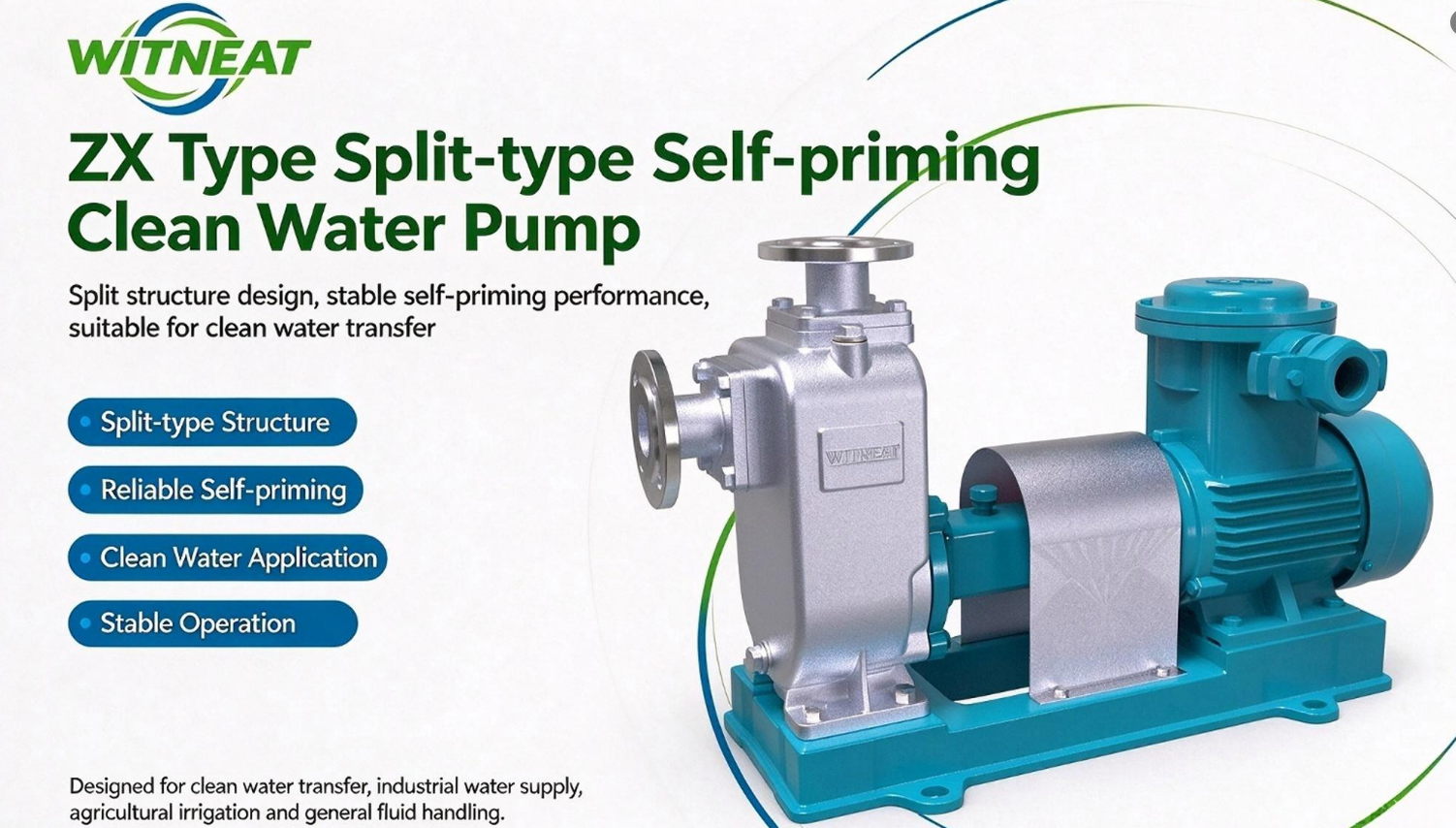

ZX Type Split-type Self-priming Clean Water Pump
Flow Range：3.2-1200m³/h
Head Range：10-75m
Self - Priming Lift：5m
Motor Power：0.55-55kW
Inlet/Outlet Range：DN25-DN300
Head Range：10-75m
Self - Priming Lift：5m
Motor Power：0.55-55kW
Inlet/Outlet Range：DN25-DN300
Send an inquiry
ZX Type Split-type Self-priming Clean Water Pump
WYT's split self-priming fresh water pump, classified as a Self priming pump, features a unique split design where the pump body is connected to the motor via a coupling. This innovative configuration not only grants the pump remarkable flexibility but also simplifies maintenance procedures. As a specialized Clear water pump, it is well-suited for diverse industrial and agricultural applications, whether serving as a reliable clear water pump and well solution or forming part of efficient clean water dewatering pump packages. Its robust self-priming capabilities and efficient water transfer make it an ideal component in clear water dewatering pump sets, ensuring dependable performance across various water management tasks.
Application Scenarios
- Industrial field
It is suitable for process circulating water and cooling water transportation in chemical, pharmaceutical, food and other industries, as well as the initial drainage of wastewater treatment station.
- Agricultural irrigation
It can be connected with mobile sprinkler irrigation equipment to realize long-distance and large flow water supply, and adapt to complex terrain such as farmland and orchard.
- Municipal Engineering
Used for maintenance of urban drainage pipe network, emergency rescue drainage, and initial water storage of rainwater collection system.
- Civil field
Suitable for high-rise building water supply pressurization, home garden irrigation, swimming pool circulating water treatment and other scenes.
Product Advantages
- Wide range of application
Split-type self-priming fresh water pump can adapt to different installation environments by adjusting the distance between the pump and the motor, and its split design makes the motor and the pump body can be independently arranged, which is more advantageous in the scenario of space limitation or the need for flexible layout, and it is especially suitable for the complex pipeline system or the old equipment renovation project.
- High operational stability
The motor and the pump body are connected through the coupling to form a physical interval, which can effectively isolate the motor vibration transmission to the pump body and reduce the risk of resonance. The buffer design of the coupling can absorb the energy of load fluctuation, avoiding the direct impact of sudden changes in the motor load on the pump body, which significantly improves the smoothness of equipment operation. This design is crucial for achieving the reliable performance expected in applications ranging from a clear water pump and well setup to complete clean water dewatering pump packages and specialized clear water dewatering pump sets.
ZX Type Split‑type Self‑priming Clean Water Pump VS ZW Self‑priming Non‑clog Sewage Pump
| sheet | ||
| Comparison Item | ZX Type Split‑type Self‑priming Clean Water Pump | ZW Self‑priming Non‑clog Sewage Pump |
| Impeller & Hydraulic structure | Closed impeller, narrow flow‑passage; high hydraulic efficiency for clean medium | Semi‑open / channel impeller, wide flow‑passage; anti‑clogging design for impurity‑containing liquid |
| Allowable transport medium | Clear water, seawater, weak acid‑alkali liquid, mushy slurry; viscosity ≤100 centipois, solid content ≤30% of medium; not for long‑term delivery of large‑size solid particles | Sewage, wastewater, liquid with solid particles & long fibers; suitable for medium with large impurity content; not optimized for high‑efficiency clean‑water working condition杭州西子泵... |
| Typical application scenarios | Water supply, farm irrigation, fire‑protection, chemical liquid transfer, mine washing, equipment cooling | Municipal sewage, waste‑water treatment, pond drainage, medium carrying fiber and solid impurities |
| Operation & maintenance focus | Mainly inspect wear of front & rear seal rings and mechanical seal; avoid sucking large solid particles to prevent impeller blockage | Besides seal parts, regularly inspect impeller & flow‑passage for fiber winding and solid jam; higher risk of winding failure for fibrous medium |
FAQ for ZX Type Split‑type Self‑priming Clean Water Pump
Q1: Is it necessary to install a bottom valve on the suction pipeline for ZX pump?
A1: No bottom valve is required. You only need to fill liquid into pump casing before the first‑time startup. Please note that the suction pipeline must be completely air‑tight; any air leakage will cause failure of self‑priming function.
Q2: What kind of media can this ZX self‑priming pump handle?
A2: It is applicable for clear water, seawater, weak acid & alkali chemical liquid and mushy slurry. The medium viscosity shall not exceed 100 centipois, and solid content shall be no more than 30% by weight. It is not suitable for large‑size hard solid particles.

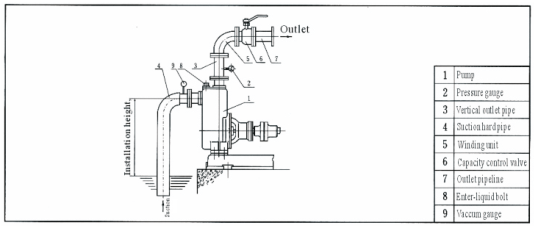

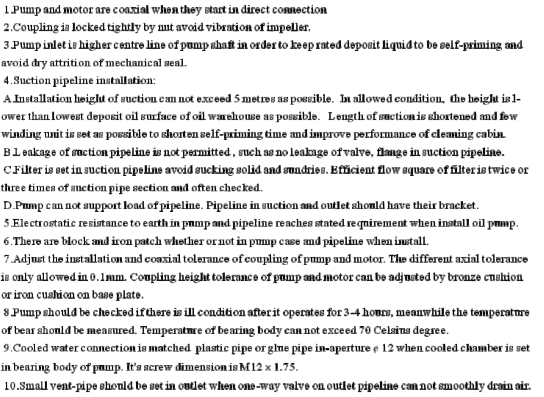

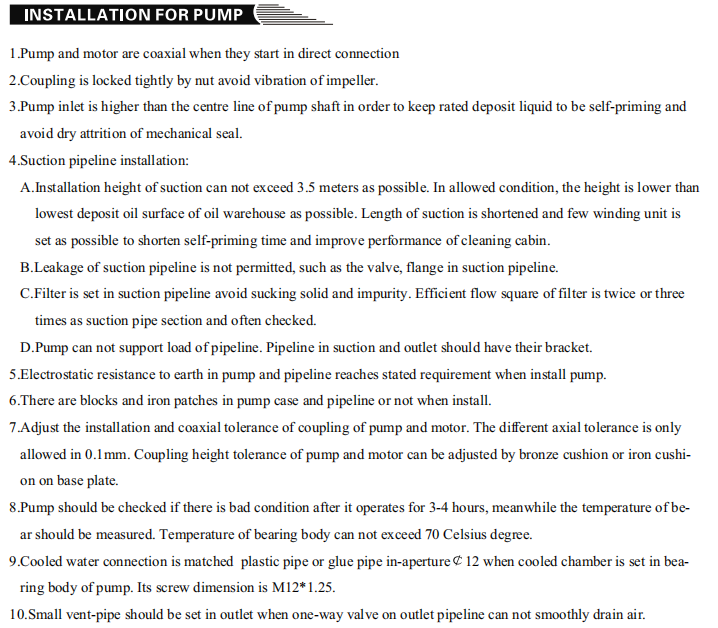

Q3: What is the maximum allowable suction lift, and what installation tips should we follow?
A3: The theoretical max self‑priming height is 6.5 m. For reliable operation, we recommend actual suction lift ≤3.5 m. Minimize pipe elbows and shorten suction pipeline length. Pump inlet position should be higher than pump shaft center‑line.
