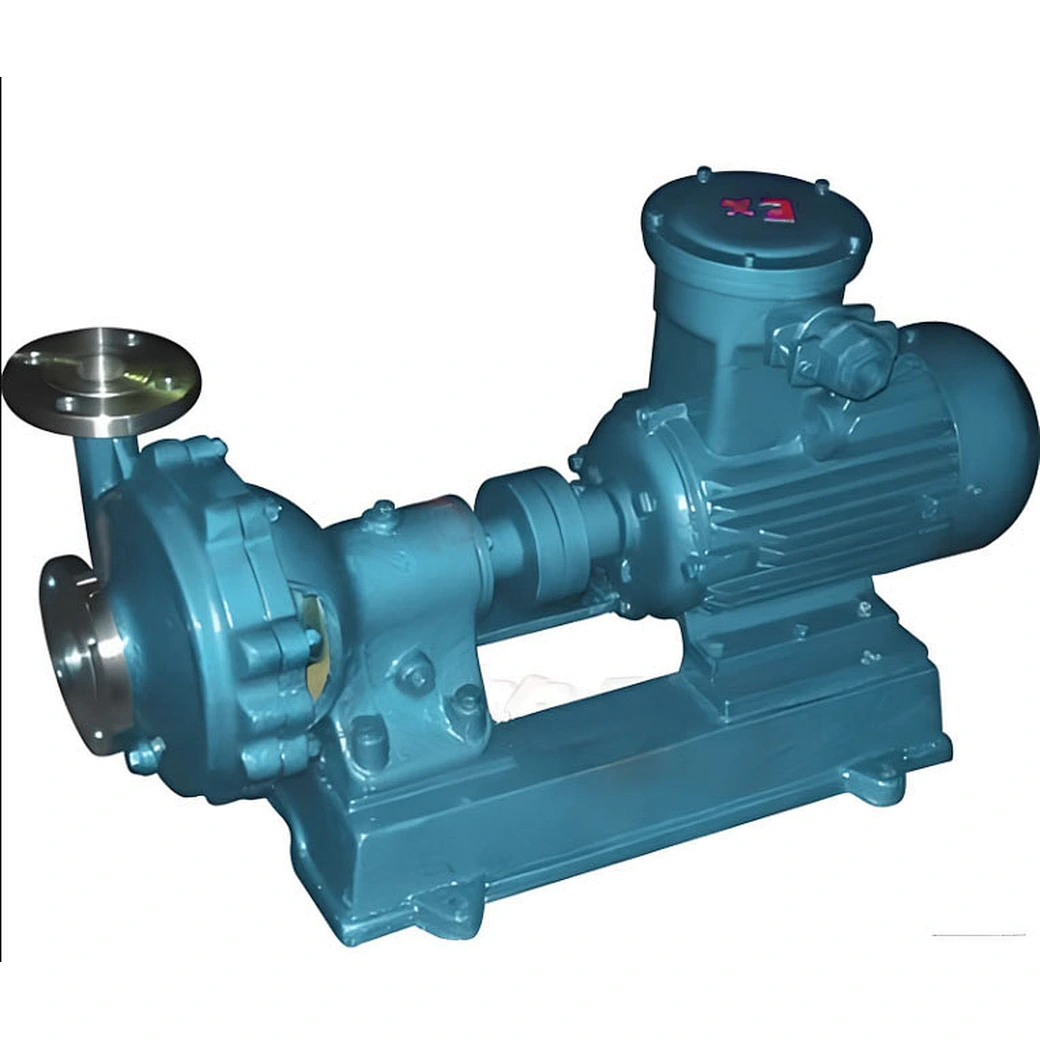

WYTAFB
Head Range：15-64m Motor Power：0.75-55kW Inlet/Outlet Range：DN25-DN150 AFB Stainless Steel Corrosion Resistant Pump
Head Range：15-64m
Motor Power：0.75-55kW
Inlet/Outlet Range：DN25-DN150
Structural Features
- All stainless steel flow path design
The overflow parts (impeller, pump body, pump cover) are precision casted in 304/316 stainless steel to ensure that there is no weak link on the contact surface with corrosive media.

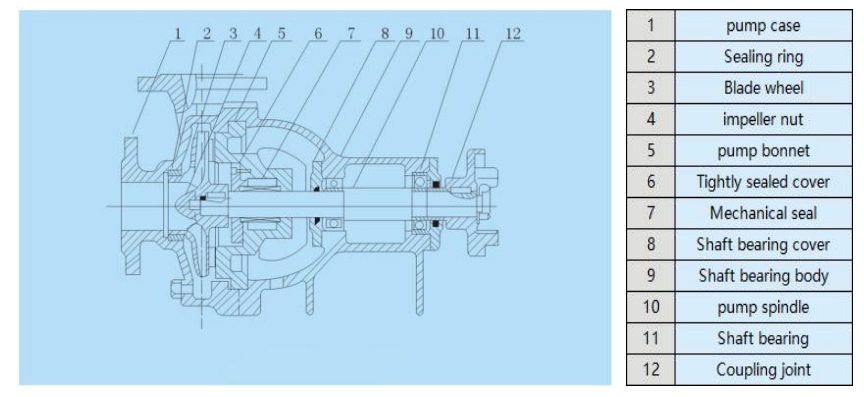

- Cantilevered single-stage centrifugal structure
Adopting back-opening design, the impeller is directly mounted on the motor extension shaft, compact structure, no need to disassemble the pipeline to maintain the seal and impeller.
High-performance Mechanical Seal
Standardly equipped with corrosion-resistant carbide/graphite double-face mechanical seal, optional cartridge seal or packing seal, to adapt to the requirements of leakage control in different working conditions.
Self-balancing system for axial force
The impeller is equipped with balancing holes and ribs at the back, which can effectively reduce the axial force and prolong the service life of the bearings.
Product Advantages
Excellent Corrosion Resistance
It can withstand acid (dilute sulfuric acid, nitric acid, acetic acid), alkali, salt solution and organic solvents and other media (pH 4-13), and the applicable temperature is ≤100°C.
High efficiency and energy saving operation
Hydraulic model is optimized by CFD, the efficiency is increased by 8%-12% compared with ordinary corrosion-resistant pumps, which significantly reduces long-term operation energy consumption.
Low Maintenance and High Reliability
Heavy-duty bearing box design with grease-lubricated deep groove ball bearings as standard, supporting 24-hour continuous operation with MTBF ≥ 20,000 hours.
Modular Component Design
Standard interface with universal motor connectors supports quick replacement of wearing parts and reduces downtime losses.
Application Scenarios
Chemical Process Conveying
Pickling line circulation, pharmaceutical addition, reactor feeding, mother liquor transfer (for sulfuric acid, hydrochloric acid and other media).
- Environmental protection water treatment system
- Pharmaceutical & Food Engineering
GMP cleanliness compliant CIP/SIP process pumps for transporting sanitary media such as ethanol, buffers, fermentation liquids, etc.
- Metallurgy & Surface Treatment
Electrolyte circulation, anodizing tank liquid transfer, phosphating treatment line, metal acid mist exhaust gas scrubber tower supporting.
Service Assurance
- Accurate demand matching
Free on-site demand analysis, customized flow, pressure and piping configuration scheme;
- Rapid delivery response
Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;
- Flexible warranty policy
1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.
