WYTFSB

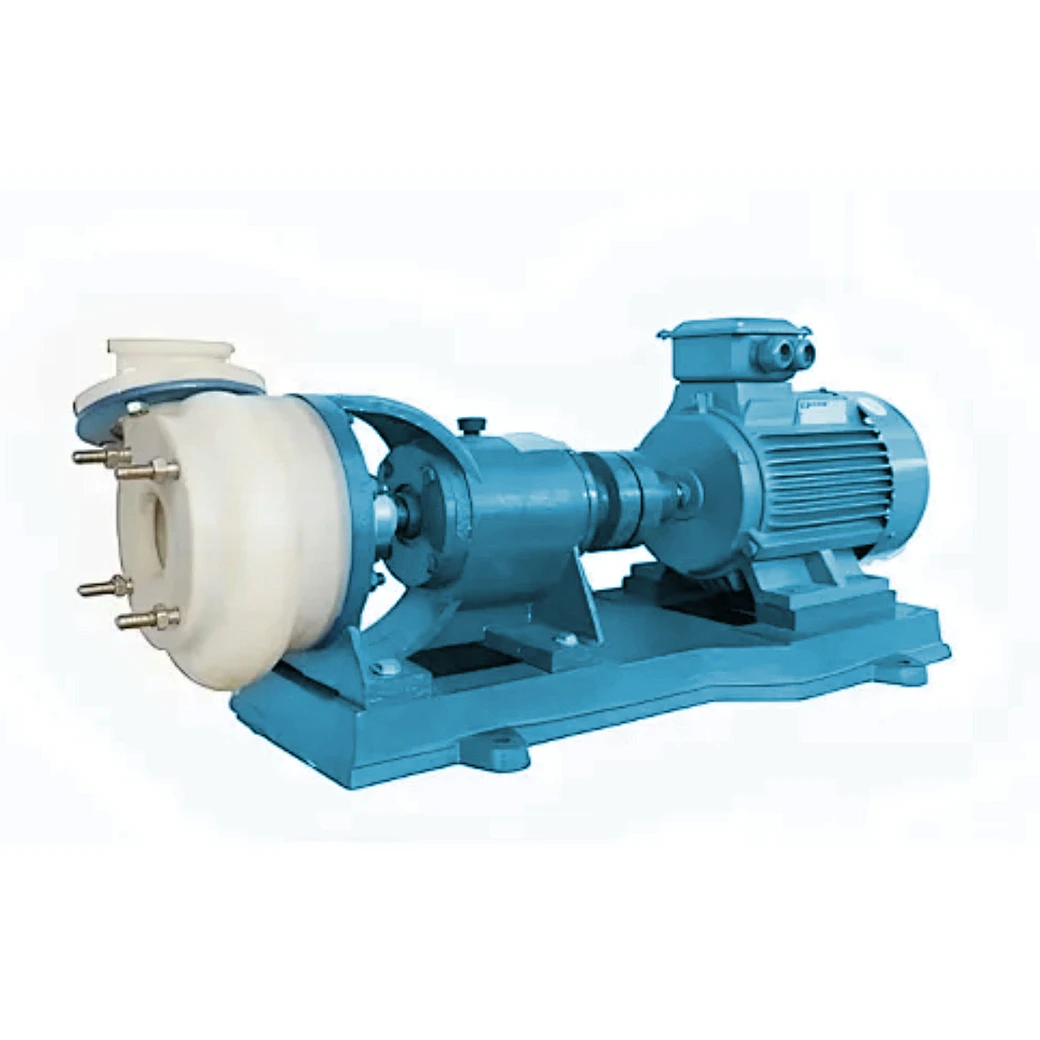

Head Range：10-50m Motor Power：1.5-30kW Inlet/Outlet Range：DN25-DN100 FSB Floroplastic Alloy Centrifugal Pump
Head Range：10-50m
Motor Power：1.5-30kW
Inlet/Outlet Range：DN25-DN100

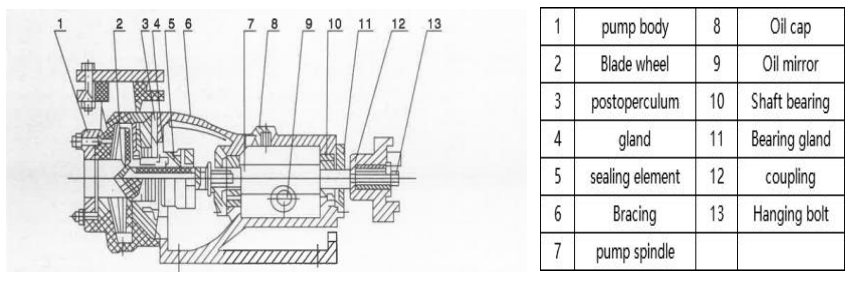

Structural Features
- Fully Fluoroplastic Alloy Lining
All wetted parts – pump casing, impeller, cover, and others – are manufactured by molding and sintering a high‑performance fluoroplastic alloy, forming a seamless liner that delivers outstanding corrosion resistance and chemical inertness. This construction is standard on our summit centrifugal pump, distinguishes it from a typical centrifugal stainless steel pump, and makes it one of the most reliable centrifugal pumps for sale today.
- Strong metal casing
The liner is externally enclosed by a casing fabricated from high‑strength cast iron, stainless steel (304/316), or other alloys. This construction delivers superior mechanical strength and pressure‑bearing capability, ensuring a rugged pump body – a hallmark shared by our summit centrifugal pump, the centrifugal stainless steel pump range, and all centrifugal pumps for sale in our portfolio.
Rear-opening structure
Adopting rear-opening design, the entire impeller, mechanical seal, bearing box and other rotor parts can be pumped out directly without disassembling the pump body and inlet/outlet piping, which greatly simplifies the maintenance and overhaul process.
Externally mounted bellows mechanical seal
Advanced externally mounted bellows mechanical seal is standard, which is reliable, easy to observe and replace, and effective in preventing media leakage, especially suitable for corrosive, volatile or toxic media.
Product Advantages
Unparalleled corrosion resistance
Featuring fluoroplastic alloy wetted parts, both the Summit centrifugal pump and the centrifugal stainless steel pump can handle virtually every aggressive chemical, from concentrated acids to complex solvent mixtures, ensuring wide service flexibility. All these durable centrifugal pumps for sale are ready for your toughest conditions.
Excellent sealing performance and zero leakage
Featuring a high-performance externally mounted bellows mechanical seal and the superior resistance of fluorine plastics, our Summit centrifugal pump and centrifugal stainless steel pump effectively curb media leakage, ensure operational safety, and fully comply with environmental regulations. These centrifugal pumps for sale are particularly well-suited for hazardous, costly, or ultrapure fluid applications.
Low Operation costs
Unique rear-opening structure design, so that routine maintenance, replacement of wearing parts (such as mechanical seals, impellers) becomes very fast and simple, significantly shorten the downtime, reduce the difficulty of maintenance and labor costs.
High reliability and long service life
Sturdy metal shell provides mechanical support, fluorine plastic alloy lining to resist chemical erosion, and key components are made of wear-resistant and corrosion-resistant materials.
Application Scenarios
Chemical industry
All kinds of strong acid, strong alkali, organic solvents, mixed acids, reaction intermediates, electrolyte and other highly corrosive media, such as transportation, circulation and pressurization.
- Pharmaceutical and biological engineering
- Environmental protection and hydrometallurgy
Acid/alkali dosing in wastewater treatment, transportation of wastewater containing corrosive components, circulation of flue gas desulfurization slurry, treatment of leaching solution and extraction solution in hydrometallurgical process.
Service Assurance
- Accurate demand matching
Free on-site demand analysis, customized flow, pressure and piping configuration scheme;
- Rapid delivery response
Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;
- Flexible warranty policy
1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.
