WYTEB

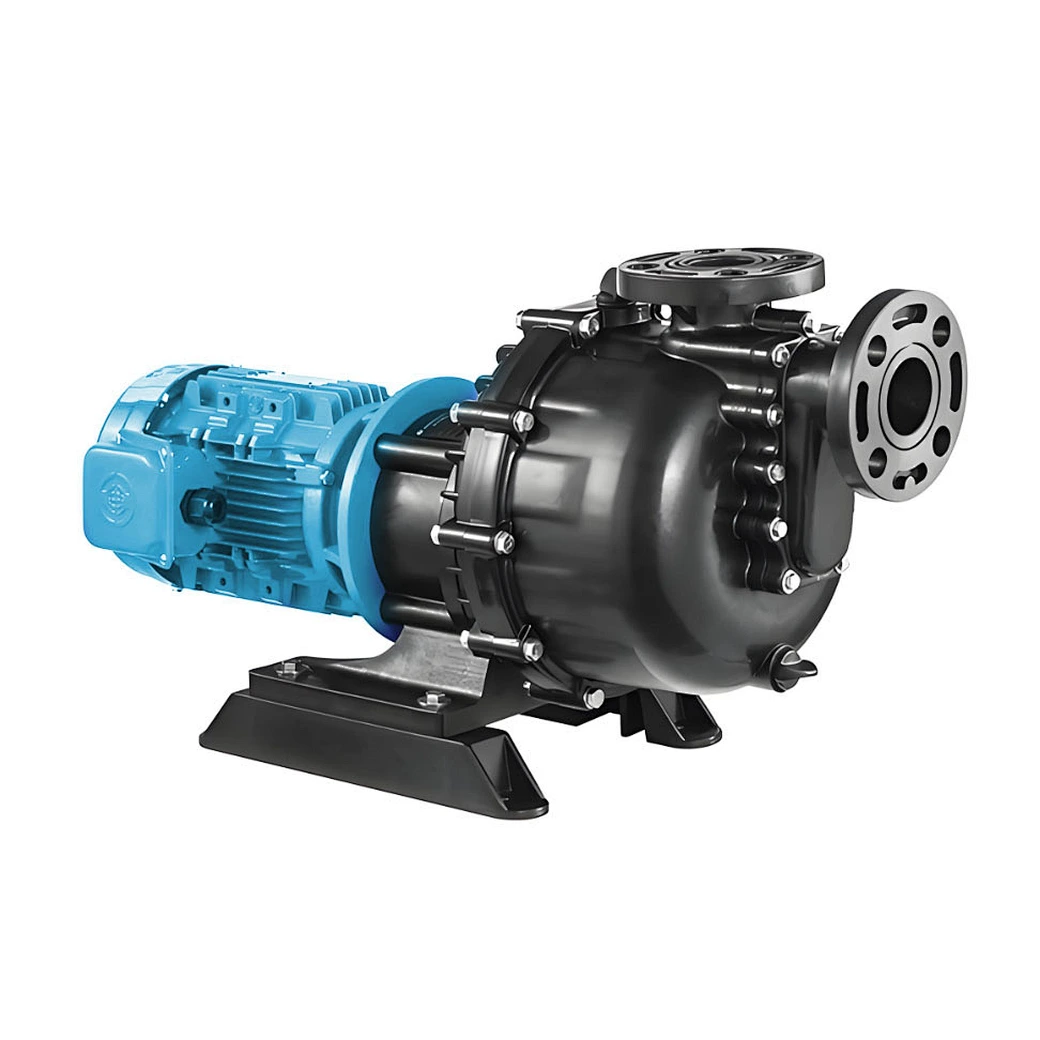

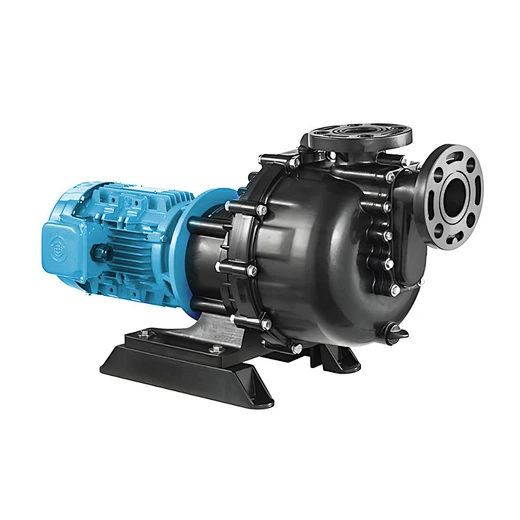

Head Range：5-35m Motor Power：0.25-3kW Inlet/Outlet Range：DN40-DN80 EB Coaxial Self-priming Acid Alkali Resistant Pump
Head Range：5-35m
Motor Power：0.25-3kW
Inlet/Outlet Range：DN40-DN80
Structural Features
- Coaxial Direct Connection Design
The motor and pump body adopt rigid coaxial connection without bearing or coupling transition, which reduces vibration and energy loss.
- High-efficiency self-priming structure
Built-in double-stage gas-liquid separation chamber and return hole can realize rapid self-priming of 4-6 meters suction range within 30 seconds, without filling pump or bottom valve.
Fully sealed corrosion-resistant mechanical seal
Configured with double end-face mechanical seal and external flushing liquid interface to eliminate the risk of corrosive media leakage.
Product Advantages
Extreme media adaptability
It can transport corrosive liquids such as sulfuric acid, hydrochloric acid, sodium hydroxide, etc. with a concentration of ≤40% for a long period of time, and it can withstand temperatures of up to 80℃.
Low Maintenance and High Reliability
Coaxial structure reduces mechanical failure points, and the front-end removable sealing unit supports quick replacement.
Optimized for Energy Efficiency and Noise
Closed impeller with hydrodynamic flow path.
Application Scenarios
Chemical Process Circulation
Pressurized transfer of corrosive media in processes such as pickling lines, plating solution circulation, and dosing of pharmaceuticals.
- Environmental Wastewater Treatment
Service Assurance
- Accurate demand matching
Free on-site demand analysis, customized flow, pressure and piping configuration scheme;
- Rapid delivery response
Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;
