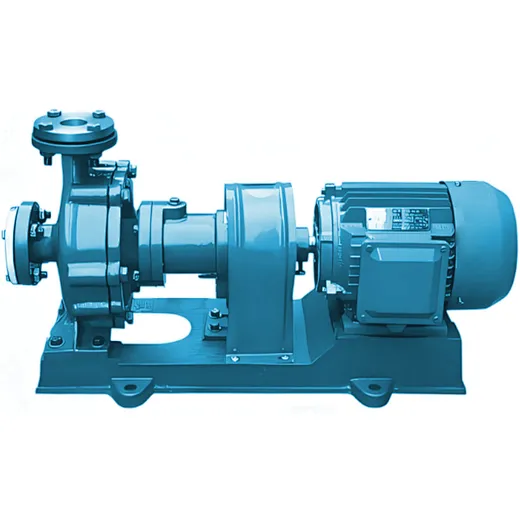

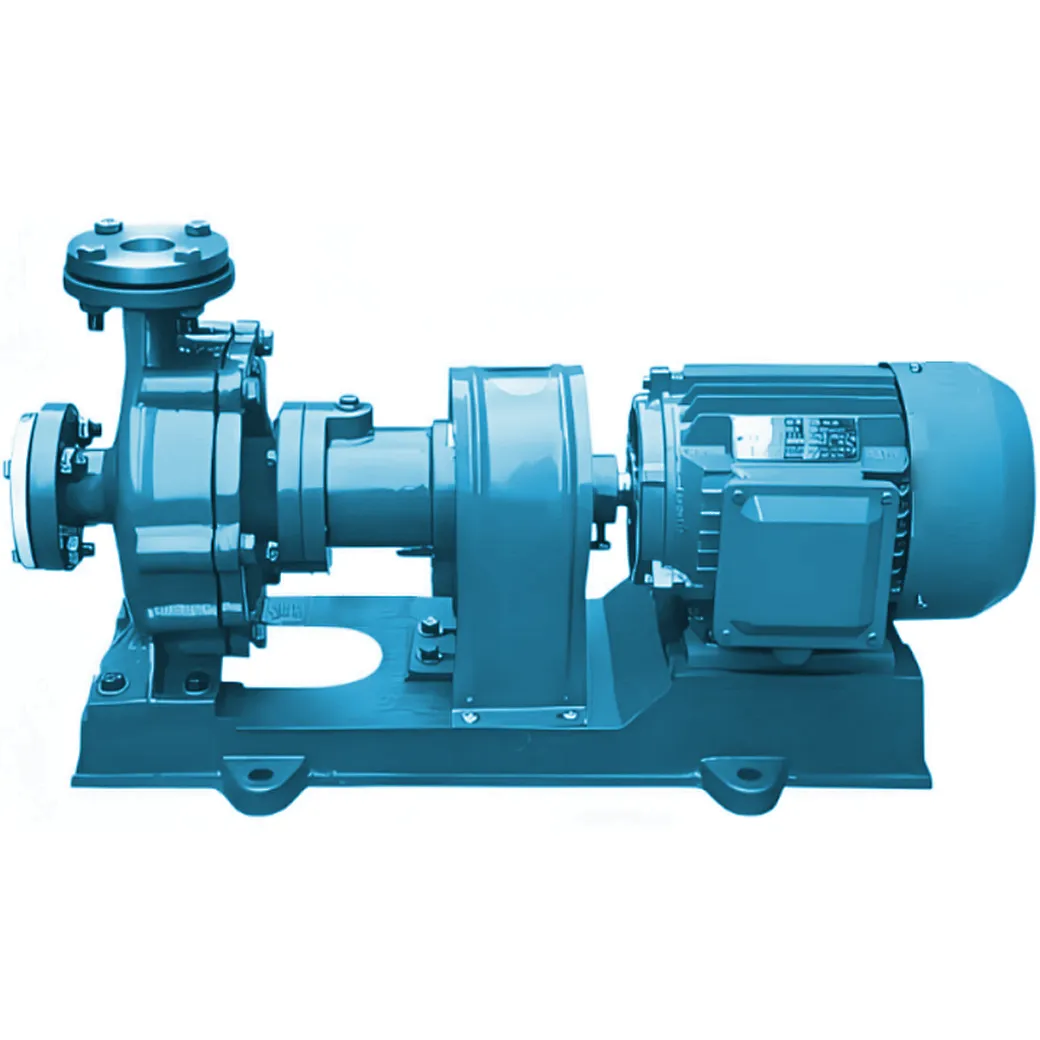

WYTLQRY

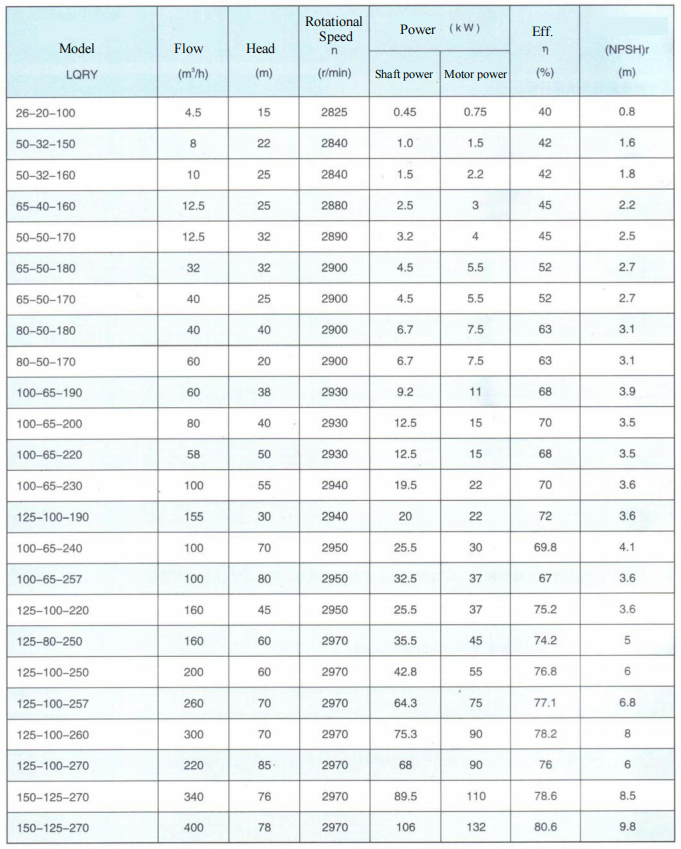

Head：15-80 m Motor Power：0.75-132 kw Inlet/Outlet Range ：DN20-DN150 LQRY Type Thermal Oil Pump
Head：15-80 m
Motor Power：0.75-132 kw
Inlet/Outlet Range ：DN20-DN150

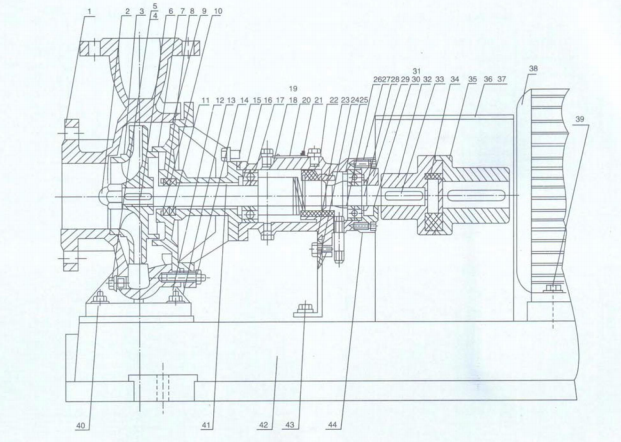

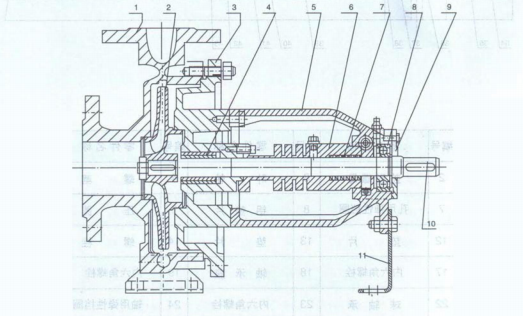

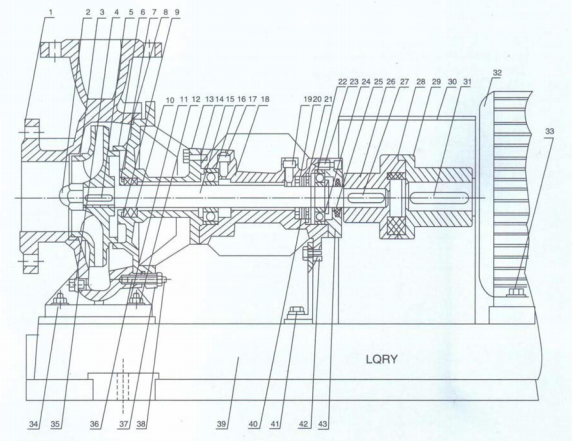

Structural Features
- Centrifugal Seal Structur
A cantilevered, rear-opening structure, where the impeller and pump cover are mounted independently of each other, allows maintenance of the seal assembly without the need to disassemble the piping.
- High-Temperature Mechanical Seal
Standard bellows-type double-face cartridge type mechanical seals support long-term leakage-free operation for media up to 350°C, making them ideal for high-temperature applications such as an oil pump, oil transfer pump, or oil pump extractor.
Thermal Symmetry Design
The pump body adopts axisymmetric thermal compensation structure to avoid thermal stress deformation under high temperature working condition.
Product Advantages
Stable High-Temperature Performance
Chromium-molybdenum alloy steel is used for the overflow parts, which has excellent heat-resistant performance and is suitable for heat-conducting oils, molten salts and other media.
Zero Leakage Operation
Double cooling chamber mechanical seal design, with external flushing piping system, to eliminate the risk of high temperature coking, ensuring stable operation and longevity in demanding applications such as an oil pump, oil transfer pump, or oil pump extractor.
Energy Efficiency Optimization
The hydraulic model is optimized by CFD, and the efficiency is improved by 8-12% compared with conventional pumps, with NPSHr ≤ 2.5m.
Application Scenarios
Chemical Process Heating Systems
Suitable for heat transfer oil circulation heating of reaction kettle and distillation tower, temperature range -20℃~350℃.
- Industrial Furnace Heat Transfer
- Renewable Energy Facilities
Molten salt heat storage type solar thermal power station of high-temperature molten salt delivery.
Service Assurance
- Accurate demand matching
Free on-site demand analysis, customized flow, pressure and piping configuration scheme;
- Rapid delivery response
Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;
- Flexible warranty policy
1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.
