WYTUHB

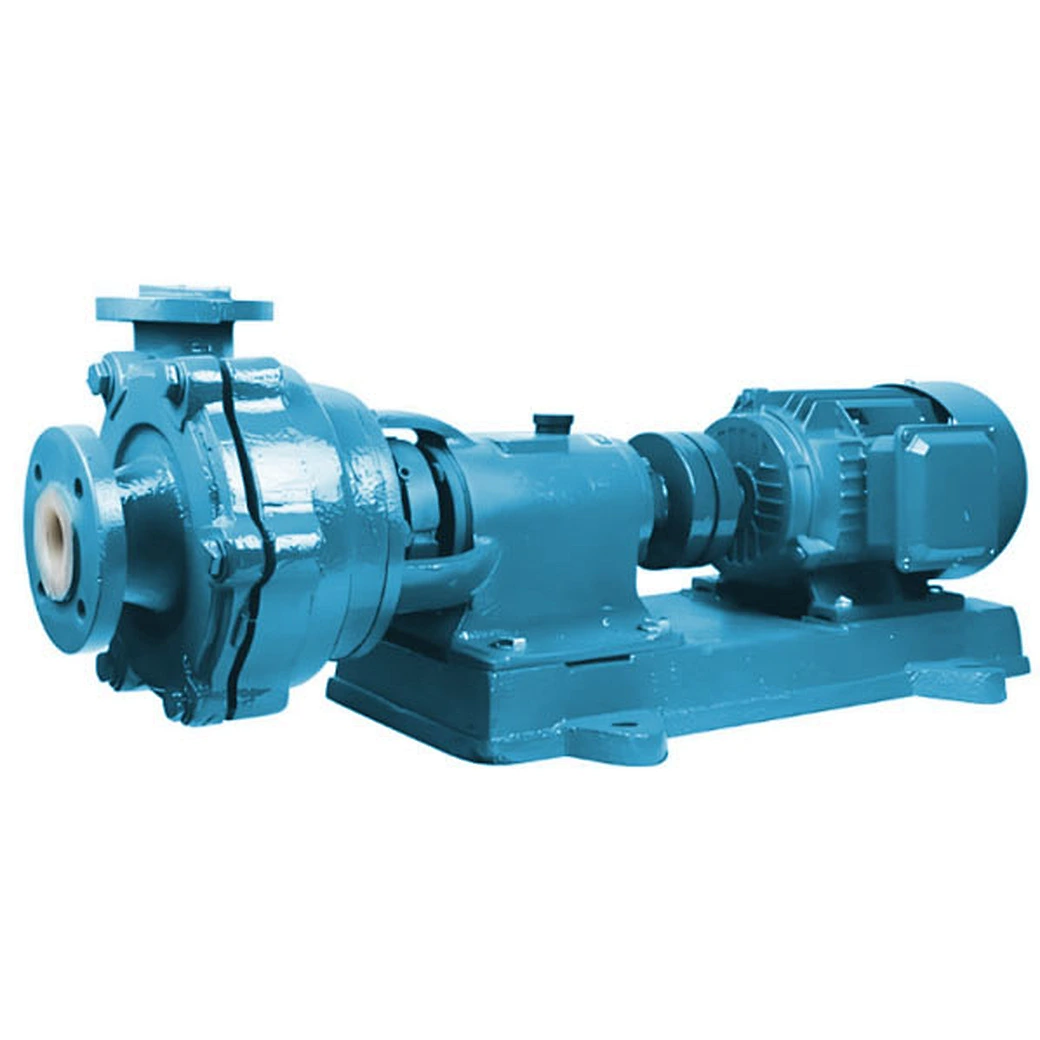

Head Range：5-40 m Inlet/Outlet Range：DN25-DN250 UHB Type Corrosion Wear-Resisting Mortar Pump
Head Range：5-40 m
Motor Power：0.75-132
Inlet/Outlet Range：DN25-DN250
Structural Features
- Full-plastic lining structure
- Semi-open impeller design
The semi-open impeller design, featuring a wide flow channel and large outlet angle, enables our mortar pump to efficiently pass solid particles up to ≤8mm in size while minimizing the risk of fiber entanglement. This robust construction ensures reliable performance in demanding applications such as grout and mortar handling.
Heavy-duty shaft sealing system
Our mortar grout pumps feature a standard WB2 external bellows mechanical seal. Optional double face or power seals are available for customization, ensuring reliable performance in high-pressure, abrasive mortar and grout applications.
Product Advantages
Extreme abrasion and corrosion resistance
UHMWPE lining is 6 times more abrasion-resistant than carbon steel, and resistant to strong acids, alkalis and organic solvents of pH1~14.
Non-clogging high-efficiency conveying
Passing capacity up to Φ8mm hard particles or 30mm fiber impurities, volumetric efficiency>85%, far more than metal pumps.
Ultra-low maintenance cost
lining replacement without disassembling the pump body, impeller can be used in reverse, life expectancy of stainless steel pumps 3~5 times.
Lightweight and energy-saving
The weight of the whole machine is 30% lighter than that of metal pumps, and the power of the supporting motor is reduced by 15~20%.
Application Scenarios
Chemical corrosive slurry
Waste acid sludge from acid washing line, titanium sulfate solution from titanium dioxide production.
- Nonferrous metal beneficiation
- Building Materials & Wastewater Treatment
Ceramic glaze transportation, municipal sludge dewatering system, black liquor recovery for alkaline paper making.
Service Assurance
- Accurate demand matching
Free on-site demand analysis, customized flow, pressure and piping configuration scheme;
- Rapid delivery response
Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;
- Flexible warranty policy
1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.
