WYTZCQ

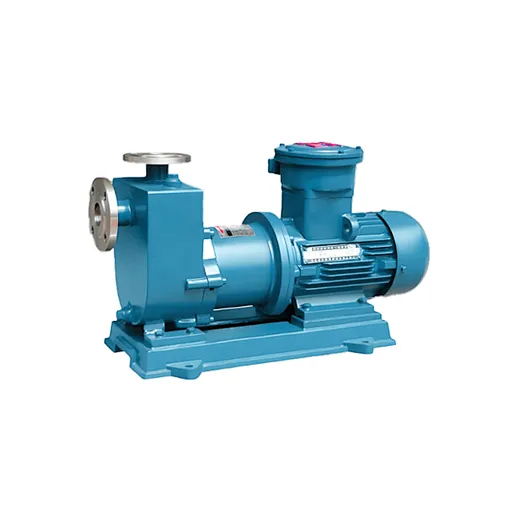

Head Range：15-32 m Inlet/Outlet Range： DN20-DN100 ZCQ Type Self Priming Magnetic Force Driving Pump
Head Range：15-32 m
Motor Power：1.1-22 kW
Inlet/Outlet Range： DN20-DN100
Structural Features
- Magnetic Drive System
This self-priming magnetic water pump adopts high-performance permanent magnets to achieve non-contact power transmission. The magnetic drive water pump is further equipped with a fully sealed isolation sleeve that hermetically separates the pump chamber from the motor, guaranteeing zero leakage and secure operation.
- Self-priming pump chamber structure
Integrated gas-liquid separation chamber and return channel, self-priming height up to 4-5 meters after the first liquid injection (working condition dependent), no need to repeat pump filling.
Corrosion-resistant overflow parts
The pump body, impeller and isolation sleeve can be made of stainless steel (304/316L) or fluorine plastic (PP/PFA) to cope with strong corrosive media.
Product Advantages
Full seal safety protection
No mechanical seal design, completely eliminate leakage, suitable for highly toxic, flammable, strong corrosive media, in line with chemical safety norms.
Efficient self-priming performance
This self-priming pump requires no liquid filling or bottom valve prior to startup, greatly simplifying operation. It is particularly suited for applications such as tank unloading and underground storage tank fluid extraction. The magnetic drive water pump design ensures leak-free and efficient fluid transfer.
Low maintenance and long life
Non-contact transmission reduces wear and tear, and the bearings are made of silicon carbide/ceramic material, which is resistant to dry rotation and particle-containing media, and the life span is increased by 30%+.
Application Scenarios
Chemical Process Conveying
Circulation, transfer and quantitative conveying of corrosive liquids such as hydrochloric acid and organic solvents.
- Surface treatment process
- Environmental protection treatment system
Collection and transfer of oily wastewater, acidic and alkaline wastewater to prevent leakage and pollution.
Service Assurance
- Accurate demand matching
Free on-site demand analysis, customized flow, pressure and piping configuration scheme;
- Rapid delivery response
Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;
- Flexible warranty policy
1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.
