WYT2PWS
Head/Pressure Range: 1-33 Bar Power Range: 0.75-125 kW 2PWS Type Non-negative Superposed Pressure Frequency Water Supply System
DN Range of Suction Pipe: 25-200 mm (1''-8'')
DN Range of Discharing Pipe: 25-200 mm (1''-8'')
Flow Capacity Range: 0-4750 GPM
Head/Pressure Range: 1-33 Bar
Power Range: 0.75-125 kW
DN Range of Discharing Pipe: 25-200 mm (1''-8'')
Flow Capacity Range: 0-4750 GPM
Head/Pressure Range: 1-33 Bar
Power Range: 0.75-125 kW
Send an inquiry
WYT has introduced the Non‑negative Superposed Pressure Frequency Water Supply System, an advanced solution that optimizes water distribution with stable pressure and high energy efficiency. Incorporating cutting‑edge technologies, it serves both hot‑water and cold‑water supply needs, forming a comprehensive infrastructure system. Its reliable performance extends seamlessly to applications such as a well water pump system, a general water pump system, or a water pump for irrigation system.
Core principles and technical characteristics
Non negative pressure technology
This modern water pump system employs surge tanks and vacuum suppressors to draw water directly from the municipal mains and boost it by pressure‑stacking, without ever creating a negative pressure on the supply network – thus safeguarding its operation. Such a feature is inherently absent in traditional well water pump system setups and in any ordinary water pump for irrigation system, making this unit a distinctly superior choice for urban water supply.
- Variable frequency constant pressure control
Featuring VFDs and smart digital controls, the pump continuously adjusts its speed to match changing water demand, guaranteeing steady user‑end pressure under all conditions. Whether deployed in a well water pump system, a standard water pump system, or a water pump for irrigation system, the result is consistent, maintenance‑free constant‑pressure supply.
System advantages
Water quality safety guarantee
Thanks to its fully enclosed structure that eliminates any risk of secondary contamination, combined with stainless‑steel flow components that preserve water purity and security, the unit is ideally adapted not only for a well water pump system, but also for other types of water pump system.
Flexible and economical installation
With minimal space requirements, a short setup period, and zero need for tanks or reservoirs, our well water pump system cuts both capital investment in civil works and ongoing maintenance expenses. This advantage is shared by every water pump system we offer, including our dedicated water pump for irrigation system.
Application scenarios
- Civil building water supply
Suitable for high-rise residential areas, residential communities, schools, hospitals and other places to meet the demand for domestic water, especially suitable for areas with sufficient municipal water supply but insufficient pressure.
- Industrial and commercial applications
Provide stable and reliable water sources for production water, fire water, and daily operations in industrial and mining enterprises, hotels, office buildings, and other scenarios.
- Old district renovation project
The original pneumatic water supply equipment can be upgraded and renovated to achieve energy conservation and efficiency improvement by superimposing the pressure of the municipal pipeline network, and reduce operating costs.
System Composition
- Key components

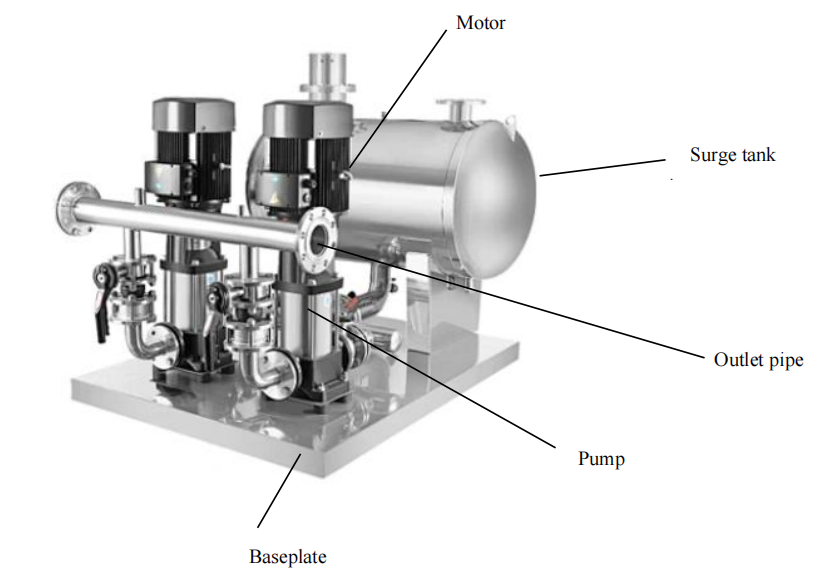

Consisting of core components such as a steady flow tank, vacuum suppressor, variable frequency speed control water pump unit, pressure sensor, and variable frequency control cabinet. The stable flow tank stores and stabilizes the water flow, the vacuum suppressor prevents negative pressure, and the variable frequency speed control water pump unit achieves pressure regulation.
- Intelligent control module
Real time monitoring of pipeline pressure through pressure sensors, frequency conversion control cabinet automatically adjusts water pump operating parameters based on feedback signals, forming a closed-loop control system to ensure constant water supply pressure.
